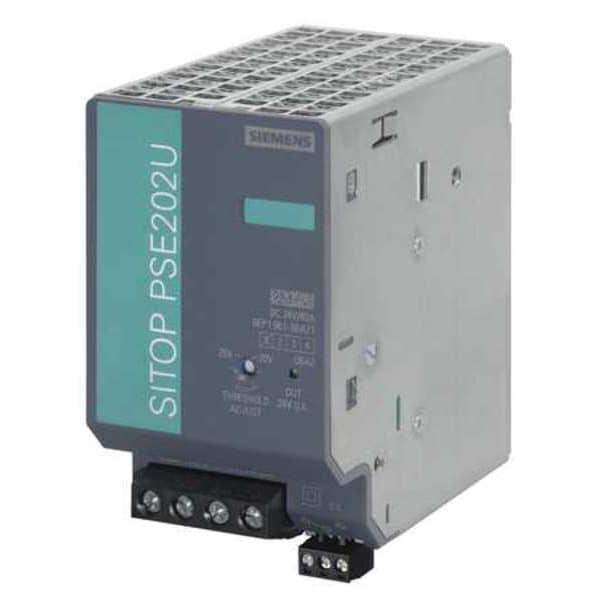

Redundancy Module, 24/28.8V DC, 24V DC, 480W, 40A, DIN Rail
| Item | Redundancy Module |
|---|---|
| Input Voltage | 24/28.8V DC |
| Output Voltage | 24V DC |
| Power Rating | 480 W |
| Output Amps | 40 A |
| Mounting | DIN Rail |
| Case Material | Metal Case |
| Height | 4.92 in |
| Width | 2-3/4 in |
| Depth | 4.92 in |
| Hz | 0 Hz |
| Status Indicator | Green LED, Red LED |
| Peak Amps | 40 A |
| For Use With | Siemens SITOP Series DC Power Supplies |
| Standards | CE, CSA, cULus Listed (UL 508, CSA C22.2 No. 107.1) File E197259, EAC Approval, UL Listed |
| Operating Temp. Range | 32 to 140 deg F |
| IP Rating | IP20 |
| Connection | Screw |
| Regulated / Unregulated | Regulated |
| Output Current | 20 A |
| Compatible with Series | SITOP |
| Operating Temperature - Minimum | -25 deg C |
| Operating Temperature - Maximum | 60 deg C |
| Housing Material | Metal |
| Package Quantity | 1 |
