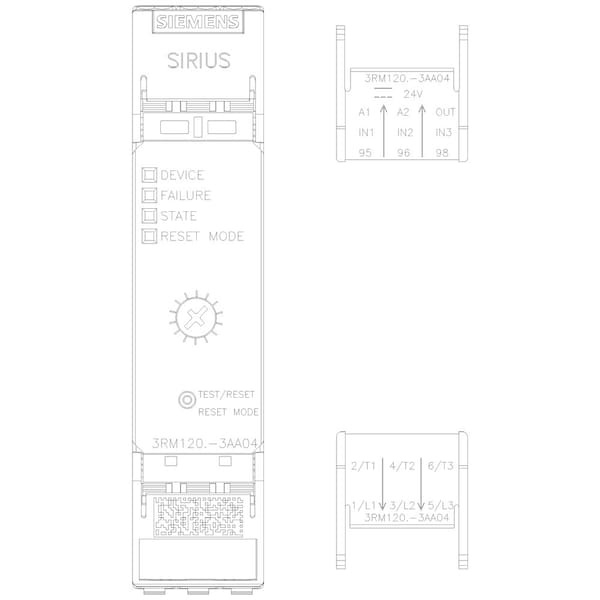

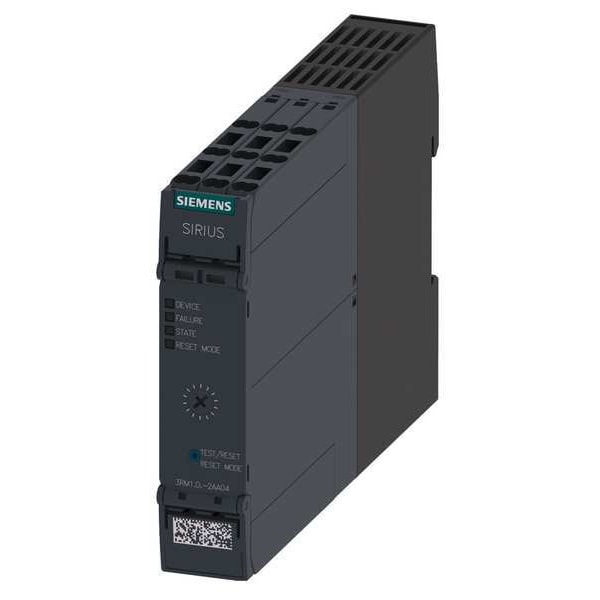

Arrancador de motor magnético compacto reversible, sin caja clasificada NEMA, 24V CC, 3 polos, 1NC/1NO.
| Item | Compact Magnetic Motor Starter |
|---|---|
| Overload Relay Amp Setting | 0.1 to 0.5 |
| Coil Volts | 24V DC |
| Enclosure NEMA Rating | No Enclosure |
| Auxiliary Contact Form | 1NO, 1NC |
| Action | Reversing |
| Amps AC | 0.5 A |
| NEMA Size | Not Applicable |
| Number of Poles | 3 |
| Hz | 50/60 |
| Accessory Group | Auxiliary Contacts, Manual Starter Accessory |
| Height | 3.94 in |
| Width | 0.89 in |
| Features | Mixed Connection |
| Standards | CCC, CE, CSA, EAC, RCM, UL Listed |
| Depth | 5.57 in |
| Thermal Unit Code | Not Applicable |
| Response Time | 60 to 90 msec, 60 to 90 msec |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Current AC | 0.5 A |
| Mechanical Operating Durability | 30,000,000 |
| Maximum Operating Temperature | 140 deg F |
| Trip Class | 10A |
| Frequency | 50/60 Hz |
| Maximum Voltage Rating | 500 V |
| Mounting Postion | Vertical, Horizontal |
| Series | 3RM1 |
| Overall Width | 1.42 in |
| Maximum Overload Relay Current Setting | 0.5 A |
| Overall Depth | 5.57 in |
| Terminal Connection Type | Screw Terminals |
| Coil Voltage | 24V DC |
| Number of Auxillary Contacts | 2 |
| Includes Pilot Light | Yes |
| Overall Height | 6.58 in |
| Minimum Operating Temperature | -13 deg F |
| NEMA Enclosure Rating | No Enclosure |
| Includes Auxiliary Contacts | Yes |
| Mounting Style | DIN Rail |
| Minimum Overload Relay Current Setting | 0.1 A |
| Reversing Capability | Reversing |
| Overload Protection Type | Electronic |
| Starter Style | IEC |
| IP Rating | IP20 |
| Package Quantity | 1 |
