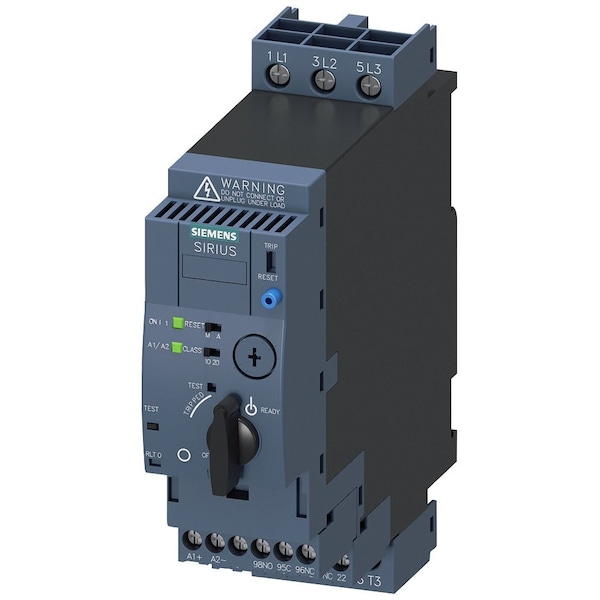

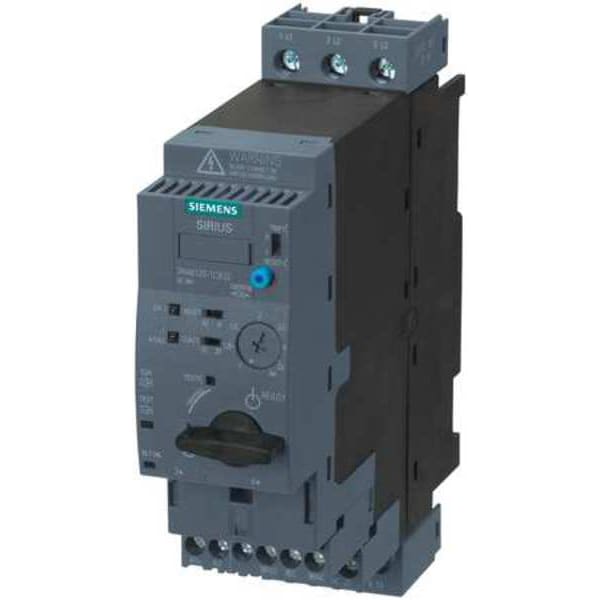

Arrancador de motor magnético IEC con inversión, 1NC/1NO.
| Item | IEC Magnetic Motor Starter |
|---|---|
| Overload Relay Amp Setting | 3 to 12 |
| Coil Volts | 24V AC/DC |
| Enclosure NEMA Rating | No Enclosure |
| Auxiliary Contact Form | 1NO, 1NC |
| HP @ 3 Phase - 240V | 3 HP |
| HP @ 3 Phase - 575V | 10 HP |
| HP @ 3 Phase - 208V | 3 HP |
| Action | Reversing |
| Amps AC | 12 A |
| NEMA Size | Not Applicable |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 5 HP |
| Standards | CCC, CSA, EAC, RCM, UL Listed |
| Includes | End of Service Life Indicator, Removable Terminals |
| Accessory Group | Auxiliary Contacts, Manual Starter Accessory |
| Features | End of Service Life Indicator and Removable Terminals |
| Depth | 6-1/2 in |
| Height | 6.69 in |
| Hz | 50/60 |
| Width | 1.77 in |
| Thermal Unit Code | Not Applicable |
| Trip Class | 10/20 |
| Coil Voltage | 24V AC/DC |
| NEMA Enclosure Rating | No Enclosure |
| IP Rating | IP20 |
| Auxiliary Contact Module Capacity | 8 |
| Horsepower @ Three Phase - 208V AC | 3 HP |
| Current AC | 12 A |
| Starter Style | IEC |
| Mounting Postion | Horizontal, Vertical |
| Includes Auxiliary Contacts | Yes |
| Mounting Style | DIN Rail |
| Terminal Connection Type | Screw Terminals |
| Horsepower @ Three Phase - 480V AC | 5 HP |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| Minimum Operating Temperature | -4 Degrees F |
| Mechanical Operating Durability | 10,000,000 |
| Horsepower @ Three Phase - 600V AC | 10 HP |
| Number of Auxillary Contacts | 2 |
| Maximum Voltage Rating | 690 V AC |
| Overload Protection Type | Electronic |
| Maximum Overload Relay Current Setting | 12 A |
| Overall Height | 6.69 in |
| Minimum Overload Relay Current Setting | 3 A |
| Frequency | 50/60 Hz |
| Reversing Capability | Reversing |
| Overall Width | 1.77 in |
| Maximum Operating Temperature | 140 Degrees F |
| Overall Depth | 6-1/2 in |
| Package Quantity | 1 |
