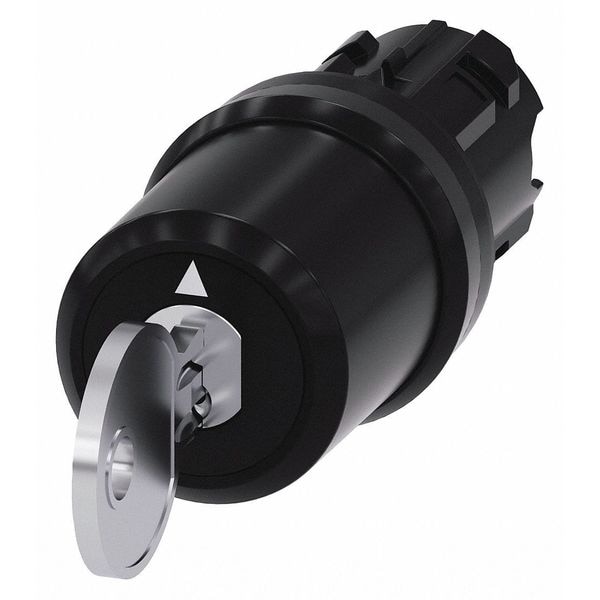

Operador de interruptor selector, tamaño de 22mm, sin leva.
| Action | Maintained |
|---|---|
| Size | 22 mm |
| Basic Material | Metal |
| NEMA Rating | 1, 12, 2, 3, 3R, 4, 4X |
| Type of Operator | Keyed |
| Cam | No Cam Included |
| Operator Head Material | Metal |
| Operator Color | Chrome |
| Position | 3 |
| Item | Keyed Selector Switch |
| Bezel Color | Black |
| Bezel Material | Plastic |
| Key Removal | Left |
| IP Rating | IP69K, IP67, IP69, IP66, IP20 |
| Switch Operation @ Position D | No Fourth Position |
| Switch Operation @ Position A | X |
| Switch Operation @ Position B | O |
| Standards | REACH Art. 33, RoHS, WEEE (2012/19/EU) |
| Switch Operation @ Position C | X |
| Key Number | SSG10 |
| Series | 3SU |
| With front ring | Yes |
| Degree of protection (IP), front side | IP67/IP69K |
| Suitable for illumination | No |
| Type of control element | Key |
| Construction type lens | Rectangular |
| Colour front ring | Black |
| Number of switch positions | 3 |
| Colour control element | Silver |
| Material front ring | Plastic |
| Panel Cutout Diameter | 22 mm |
| Overall Depth | 6 in |
| Overall Width | 4 in |
| NEMA Enclosure Rating | 3, 4, 13, 12, 1, 4X, 2, 3R |
| Hazardous Location Specification | Not Rated |
| Number of Positions | 3 |
| Switch Function @ 3rd Position | On |
| Switch Function @ 2nd Position | Off |
| Switch Function @ 4th Position | No Fourth Position |
| Includes Operator Key | Key Included |
| Switch Function @ 1st Position | On |
| Overall Height | 1/2 in |
| Operator Head Type | Keyed |
| Key Removal Position | Left |
| Operator Head Color | Chrome |
| Operator Illumination | Non-Illuminated |
| Package Quantity | 1 |
