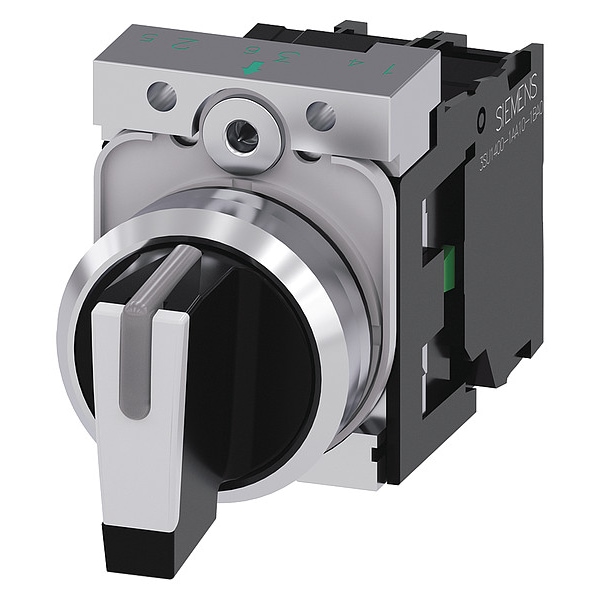

SelectorSwitch, Illum, 3Pos, 22mm, White
SelectorSwitch, Iluminado, 3 Posiciones, 22mm, Blanco
| Item | Selector Switch |
|---|---|
| Size | 22 mm |
| Basic Material | Metal |
| Type of Operator | Selector Switch |
| Action | Momentary |
| Contact Form | 1 NO |
| Operator Head Material | Plastic |
| Cam | No Cam Included |
| Color | Black, Gray, White |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 4X |
| Position | 3 |
| Bezel Color | Silver |
| DC Contact Rating | 5 A @ 500 V |
| IP Rating | IP69K, IP67, IP69, IP66, IP20 |
| Lamp Type | No Lamp Module Included |
| Series | 3SU1150 |
| Lamp Module Type | No Lamp Module Included |
| Standards | REACH Art. 33, RoHS, WEEE (2012/19/EU) |
| Includes | Holder |
| AC Contact Rating | 10 A @ 500 V |
| With front ring | Yes |
| Number of contacts as change-over contact | 0 |
| Type of control element | Toggle |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 2 |
| Colour button | White |
| Suitable for illumination | Yes |
| Type of electric connection | Screw connection |
| Spring-return | Yes |
| Degree of protection (IP) | IP67/IP69K |
| Number of switch positions | 3 |
| Switching function latching | No |
| Switch Function @ 4th Position | No Fourth Position |
| Lamp Voltage - Maximum | Not Applicable |
| Metal Operator Head Finish | Not Applicable |
| Overall Width | 1 in |
| Operator Illumination | Illuminated |
| Operator Head Type | Short-Handled Knob |
| Overall Height | 1/2 in |
| Key Removal Position | Not Applicable |
| Operator Head Color | White |
| Panel Cutout Diameter | 22 mm |
| Switch Function @ 3rd Position | On |
| Hazardous Location Specification | Not Rated |
| Overall Depth | 2 in |
| Contact Block Material | Metal |
| Switch Function @ 2nd Position | Off |
| Switch Function @ 1st Position | On |
| Number of Positions | 3 |
| Includes Operator Key | Not Applicable |
| NEMA Enclosure Rating | 3, 4, 13, 12, 1, 4X, 2, 3R |
| Package Quantity | 1 |
