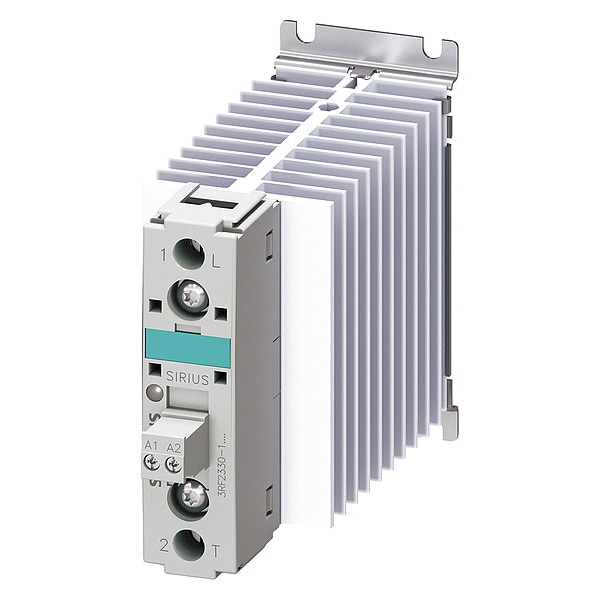

Relevador de estado sólido, Entrada de 110-230VAC, Salida de 24-230VAC.
| Item - Relay | Solid State Relay |
|---|---|
| Input or Control Voltage | 110 to 230 V AC |
| Heat Sink | Integral |
| Relay Turns On At | Zero Crossing |
| Mounting - Relay | DIN Rail |
| Input Voltage | 110 to 230V AC |
| Item | Solid State Relay |
| Overall Height - Relay | 3.94 in |
| Body Height - Relay | 3.94 in |
| Body Width - Relay | 1.77 in |
| Finger Safe | Yes |
| Case Color | White |
| Body Depth - Relay | 5.47 in |
| Standards | C-Tick (RCM), CCC, CE Certified, CSA Certified, EAC, UL Listed |
| Mounting Style | DIN Rail |
| Body Depth | 4.67 in |
| Electrical Phase | Single |
| Electrical Connection | Screw Clamp |
| Output Voltage Range | 24 to 230 V AC |
| Maximum Output Current with Heat Sink | 30 A |
| Voltage Type | AC Output |
| Maximum Operating Temperature | 140 deg F |
| Input Current | 30 A |
| Body Height | 3.94 in |
| Overall Depth | 5.3 in |
| Minimum Operating Temperature | -13 deg F |
| Frequency | 50/60 Hz |
| Response Time | 40 msec |
| Weight | 10.58 oz |
| Current Type | AC |
| Body Width | 2.09 in |
| IP Rating | IP20 |
| Output Switching Mode | Zero Crossing |
| Series | SIRIUS 3RF2 Series |
| Modular version | Yes |
| Number of phases | 1 |
| Voltage type for actuating | AC |
| Package Quantity | 1 |
