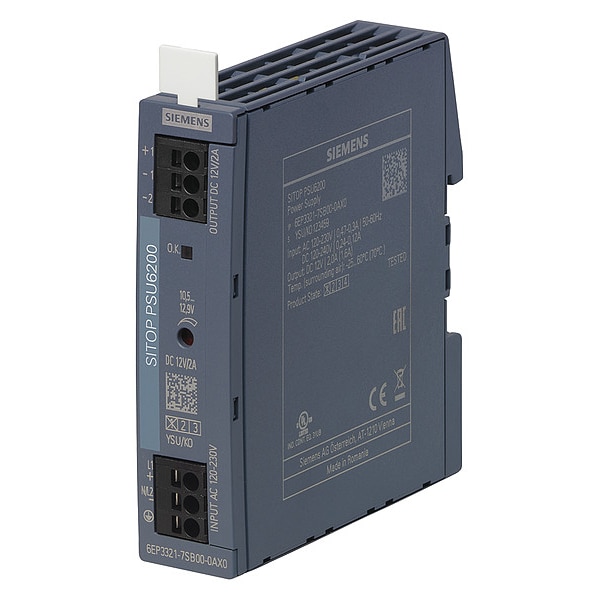

Stabilized Power Supply, 120/230V AC, 12V DC, 28.5W, 2A, DIN Rail
| Item | Stabilized Power Supply |
|---|---|
| Input Voltage | 120/230V AC |
| Output Voltage | 12V DC |
| Power Rating | 28.5 W |
| Output Amps | 2 A |
| Mounting | DIN Rail |
| Phase - Electrical | Single |
| Height | 90 mm |
| Width | 36 mm |
| Depth | 53 mm |
| Hz | 47 to 63 Hz |
| Protection | Short-Circuit Proof |
| Series | SITOP PSU6200 |
| Features | Output Overvoltage Protection, Parallel Switching for Enhanced Performance, Primary/Secondary Isolation, Product Feature of the Enclosure Housing for Side-by-Side Mounting, Product Function Output Voltage Adjustable, Property of the Output Short-Circuit Proof, Screw-Type terminals, Wide-Range Input |
| Standards | BIS, CB-Certificate Yes, CE, CSA, EAC, NEC Class 2, REACH Art. 33, Regulatory Compliance Mark (RCM), RoHS, UL, WEEE (2012/19/EU) |
| Operating Temp. Range | -25 to 70 deg C |
| Status Indicator | LED/DC OK Signal |
| IP Rating | IP20 |
| Regulated / Unregulated | Regulated |
| Housing Material | Plastic |
| Output Power - Rated | 28.5 W |
| Operating Temperature - Minimum | -13 deg F |
| Current - Output | 2 A |
| Operating Temperature - Maximum | 158 deg F |
| Special Features | Short Circuit Protection |
| Current - Inrush | 32 A |
| Wire Connection Type | Push In |
| Package Quantity | 1 |
