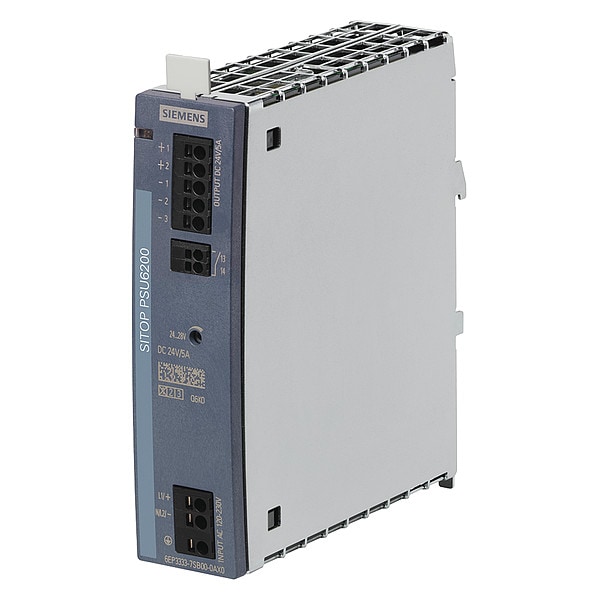

Stabilized Power Supply, 120/230V AC, 24V DC, 120W, 5A, DIN Rail
| Item | Stabilized Power Supply |
|---|---|
| Input Voltage | 120/230V AC |
| Output Voltage | 24V DC |
| Power Rating | 120 W |
| Output Amps | 5 A |
| Mounting | DIN Rail |
| Phase - Electrical | Single |
| Height | 135 mm |
| Width | 35 mm |
| Depth | 125 mm |
| Hz | 47 to 63 Hz |
| Features | Primary/Secondary Isolation, Product Feature of the Enclosure Housing for Side-by-Side Mounting, Product function Output Voltage Adjustable, Property of the Output Short-Circuit Proof, Push-in Terminals, Wide-Range Input |
| Series | SITOP PSU6200 |
| IP Rating | IP20 |
| Operating Temp. Range | -25 to 70 deg C |
| Status Indicator | LED/DC OK Signal |
| Regulated / Unregulated | Regulated |
| Protection | Short-Circuit Proof |
| Standards | BIS, CB-Certificate Yes, CE, CSA, EAC, REACH Art. 33, Regulatory Compliance Mark (RCM), RoHS, UL, WEEE (2012/19/EU) |
| Special Features | Short Circuit Protection |
| Output Power - Rated | 120 W |
| Operating Temperature - Maximum | 158 deg F |
| Current - Output | 5 A |
| Operating Temperature - Minimum | -22 deg F |
| Housing Material | Metal |
| Wire Connection Type | Push In |
| Current - Inrush | 29 A |
| Package Quantity | 1 |
