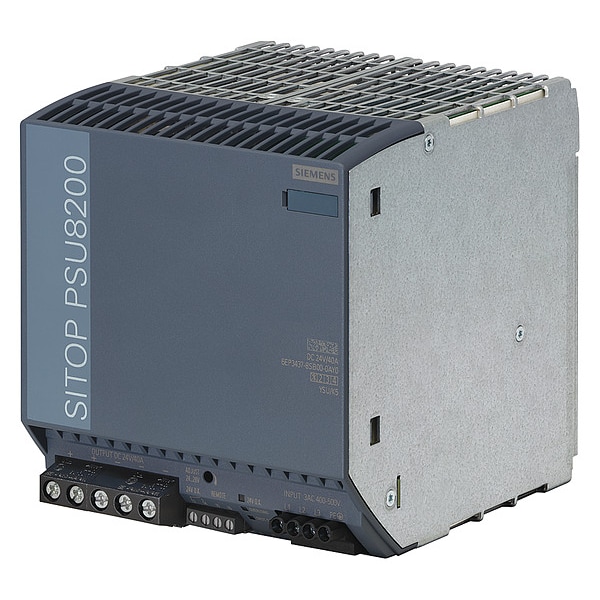

Stabilized Power Supply, 400/500V, 24V DC, 960W, 40A, DIN Rail
| Item | Stabilized Power Supply |
|---|---|
| Input Voltage | 400/500V |
| Output Voltage | 24V DC |
| Power Rating | 960 W |
| Output Amps | 40 A |
| Mounting | DIN Rail |
| Phase - Electrical | Three |
| Height | 145 mm |
| Width | 135 mm |
| Depth | 150 mm |
| Hz | 50/60 Hz |
| Protection | Short-Circuit Proof |
| Standards | BIS, CB-Certificate Yes, CE, CSA, EAC, RCM, REACH Art. 33, RoHS, UL, WEEE (2012/19/EU) |
| Connection | Screw |
| Regulated / Unregulated | Regulated |
| IP Rating | IP20 |
| Status Indicator | LED |
| Wire Connection Type | Terminals |
| Housing Material | Metal |
| Special Features | Short Circuit Protection |
| Current - Inrush | 13 A |
| Current - Output | 40 A |
| Operating Temperature - Maximum | 158 deg F |
| Operating Temperature - Minimum | -13 deg F |
| Output Power - Rated | 960 W |
| Package Quantity | 1 |
