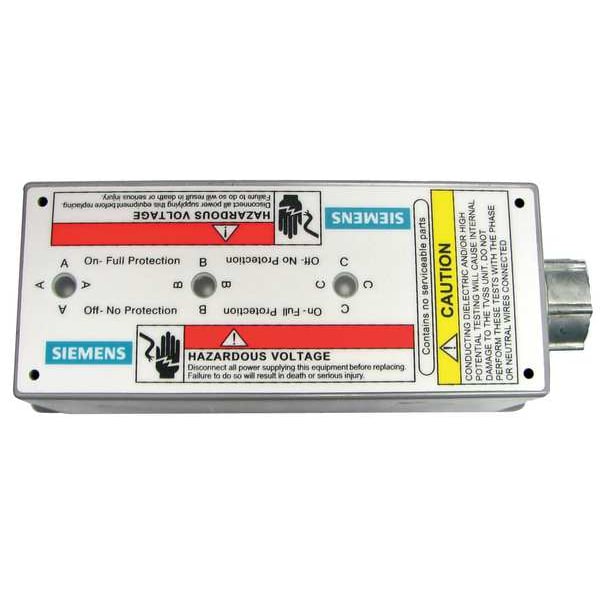

Surge Protection Device, 1 Phase, 120/240V, 2 Poles, 3 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Chase Nipple/Surface |
| Phase | 1 |
| Voltage | 120/240V |
| Number of Poles | 2 |
| Voltage Protection Rating | 1000V (L-L), 500V (N-G), 600V (L-N), 700V (L-G) |
| Number of Wires | 3 Wires |
| Modes of Protection | L-G, L-N, N-G, L-L |
| Max. Surge Current per Mode | 100 kA |
| Max. Surge Current per Phase | 100 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 100 kA |
| Modular | No |
| Filtering | No |
| Max. Continuing Operating Voltage | 150V AC |
| Enclosure NEMA Rating | NEMA 4X |
| IP Rating | IP56 |
| Enclosure Material | Polycarbonate |
| Length | 8.28 in |
| Depth | 3 in |
| Width | 3.56 in |
| Wire Gauge | 10 AWG |
| Includes | Dry Contacts |
| Modular / Nonmodular | Nonmodular |
| Standards | ANSI/IEEE, Type 1, UL/cUL 1449 Listed |
| Lightning Impulse Current | 20 kA |
| Color | Gray |
| System Connection | Parallel |
| Min. Operating Temp. | -40 deg F |
| Max. Operating Temp. | 140 deg F |
| Chase Nipple Size | 3/4 in |
| UL SPD Type | Type 1 |
| Status Indicator | Audible Alarm, LED Light |
| Includes Surge Counter | No |
| Package Quantity | 1 |
