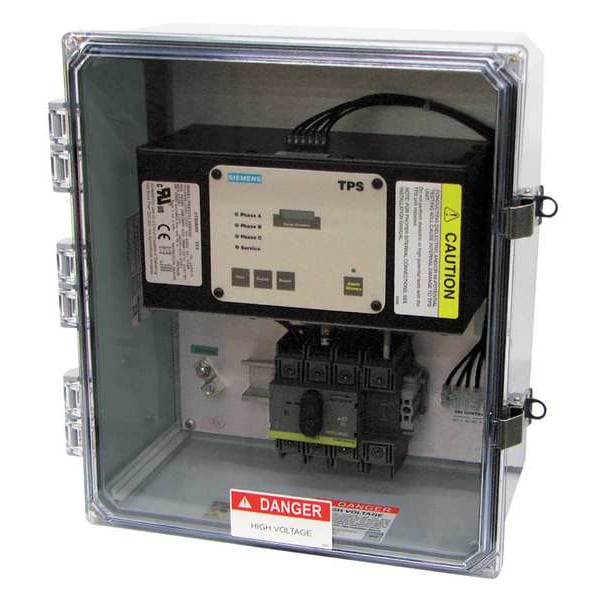

Surge Protection Device, 3 Phase, 120/208V, 3 Poles, 4 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Surface |
| Phase | 3 |
| Voltage | 120/208V |
| Number of Poles | 3 |
| Voltage Protection Rating | 1200V (L-L), 700V (L-G, L-N, N-G) |
| Number of Wires | 4 Wires |
| Modes of Protection | L-G, L-N, N-G, L-L |
| Max. Surge Current per Mode | 300 kA |
| Max. Surge Current per Phase | 300 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 200 kA |
| Modular | Yes |
| Filtering | Yes |
| Max. Continuing Operating Voltage | 150V AC |
| Enclosure NEMA Rating | NEMA 4X |
| IP Rating | IP56, IP10, IP14, IP52 |
| Enclosure Material | Polycarbonate |
| Length | 12 in |
| Depth | 7 in |
| Width | 12 in |
| Wire Gauge | 8 to 1/0 AWG |
| Includes | Dry Contacts, EMI/RFI Filters |
| Standards | ANSI/IEEE , UL/cUL 1449 Listed, UL 1283, Type 2 |
| Modular / Nonmodular | Modular |
| Noise Attenuation | -50db @ 10kHz to 100MHz |
| Lightning Impulse Current | 20 kA |
| System Connection | Parallel |
| Min. Operating Temp. | -15 deg F |
| Max. Operating Temp. | 140 deg F |
| Color | Gray |
| UL SPD Type | Type 2 |
| Includes Surge Counter | Yes |
| Status Indicator | Audible Alarm, LED Light |
| Package Quantity | 1 |
