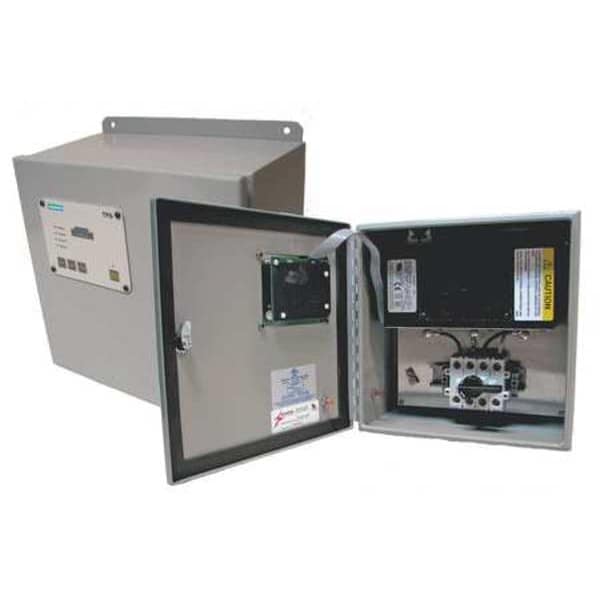

Surge Protection Device, 3 Phase, 240V, 3 Poles, 3 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Surface |
| Phase | 3 |
| Voltage | 240 V |
| Number of Poles | 3 |
| Voltage Protection Rating | 1200V (L-G, L-L) |
| Number of Wires | 3 Wires |
| Modes of Protection | L-G, L-L |
| Max. Surge Current Per Mode | 300 kA |
| Max. Surge Current per Phase | 300 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 200 kA |
| Modular | Yes |
| Filtering | Yes |
| Max. Continuing Operating Voltage | 320V AC |
| Enclosure NEMA Rating | NEMA 1, NEMA 12, NEMA 3R, NEMA 4 |
| IP Rating | IP56, IP10, IP14, IP52 |
| Enclosure Material | Steel |
| Length | 12 in |
| Depth | 7 in |
| Width | 12 in |
| Wire Gauge | 8 to 1/0 AWG |
| Includes | Dry Contacts, EMI/RFI Filters |
| Noise Attenuation | -50db @ 10kHz to 100MHz |
| Standards | ANSI/IEEE , UL/cUL 1449 Listed, Type 2 |
| Modular / Nonmodular | Modular |
| Lightning Impulse Current | 20 kA |
| Max. Operating Temp. | 140 deg F |
| System Connection | Parallel |
| Color | Gray |
| UL SPD Type | Type 2 |
| Min. Operating Temp. | -15 deg F |
| Status Indicator | Audible Alarm, LED Light |
| Includes Surge Counter | Yes |
| Package Quantity | 1 |
