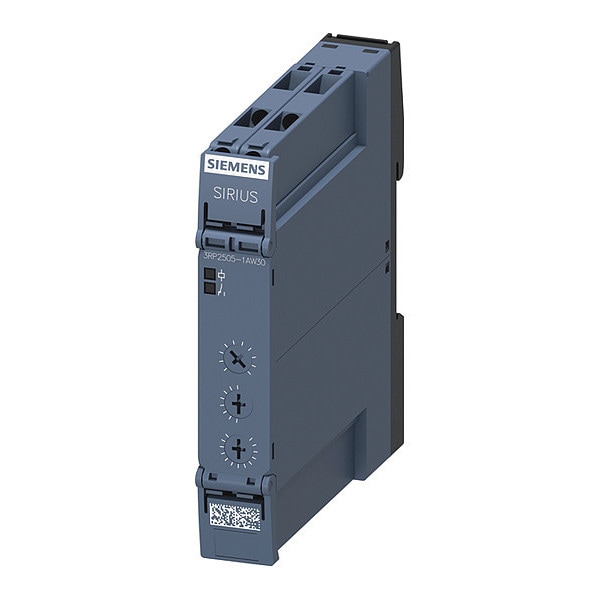

Relé de retardo de tiempo, 11 funciones, 7 pines.
| Item - Relay | Relay |
|---|---|
| Function - Timing Relay | Flasher (Starts with Break), Flasher (Starts with Pulse), Interval Delay, Interval Delay (with Control Signal), Off Delay (Passing Make Contact) ,On Delay, Off Delay (with Control Signal), On Delay (with Control Signal), Passing Make Contact (with Control Signal), Pulse Delayed (With Control Signal), Pulse Shaping (with Control Signal), Retriggerable, Retriggerable (with Control Signal) |
| Coil Volts | 12 to 240V AC |
| AC Contact Rating - Relay | 3A @ 24/250/400V |
| DC Contact Rating - Relay | 0.1 A @ 250 V, 0.2 A @ 125 V, 1 A @ 24 V |
| Number of Pins - Relay | 7 |
| Adjustment Method - Timer | Dip Switch |
| Mounting - Relay | Rail |
| Min. Time Setting - Timer | 0.05 sec |
| Contact Form - Relay | SPDT |
| Max. Time Setting - Timer | 4 days 4 hr |
| Power Consumption - Relay | 3 VA |
| Item | Multi-Function Time Delay Relay |
| Body Depth - Relay | 3.54 in |
| Socket | Not Applicable |
| Function | On Delay, Off Delay, Passing Make Contact, Interval Delay, On Delay/Off Delay (with Control Signal), Flasher (with Pulse or Break), Passing Make Contact (with Control Signal), Interval Delay (with Control Signal) |
| Base Type | Not Applicable |
| Number of Functions | 13 |
| Standards | CCC, CE Certified, CSA Certified, EAC, UL Listed |
| Electrical Connection | Screw Terminal |
| Overall Height - Relay | 3.94 in |
| Adjustment Method | Rotary Dip Switch |
| Min. Time Setting | 0.05 sec |
| Max. Time Setting | 100 hr |
| Body Height - Relay | 3.94 in |
| Hz - Electrical | 50 Hz, 60 Hz |
| Pins | 7 |
| Operating Functions | 11 |
| Contact Form | SPDT |
| Contact Amp Rating (Resistive) | 0.7 A |
| Contact Material | Silver Tin Oxide |
| Body Width - Relay | 0.69 in |
| Coil Rating | 3 VA |
| Hz | 50/60 |
| Mounting | Din Rail |
| Status Indicator | LED |
| Input Voltage | 12 to 240V AC/DC |
| Contact Rating (DC) | 0.1 A @ 250 V, 0.2 A @ 125 V, 1 A @ 24 V |
| Body Height | 3.94 in |
| Body Depth | 3.54 in |
| Current Rating | 3 A |
| Coil Voltage | 12 to 240V AC/DC |
| Overall Depth | 3.94 in |
| Body Width | 0.69 in |
| Frequency | 50/60 Hz |
| Power Consumption | 3 VA |
| Reset Method | Time-Limit Reset |
| Number of Delay Functions | 12 |
| Delay Function | Flasher (Starts with Break), Flasher (Starts with Pulse), Interval Delay, Interval Delay (with Control Signal), Off Delay (Passing Make Contact), Off Delay (with Control Signal), On Delay, On Delay (with Control Signal), Passing Make Contact (with Control Signal), Pulse Delayed (With Control Signal), Pulse Shaping (with Control Signal), Retriggerable, Retriggerable (with Control Signal) |
| Maximum Time Setting | 100 hr |
| Minimum Time Setting | 0.05 sec |
| Number of Pins | 7 |
| Mounting Style | DIN Rail |
| Contact Rating (AC) | 3 A @ 24/250/400V |
| Package Quantity | 1 |
