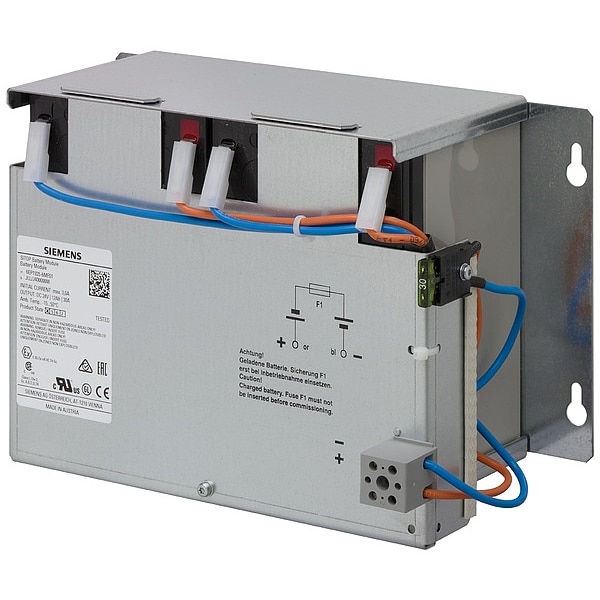

UPS Battery, 12N868, 12N869, 12N870, 24V DC, 12 Ah, Detachable Cable
| Item | UPS Battery |
|---|---|
| For Use With | 12N868,12N869,12N870 |
| Voltage - Batteries | 24 V DC |
| Capacity - Batteries | 12 Ah |
| Battery Connection | Cable |
| Backup Time (Half/Full Load) | 660 min./11 min. |
| Width | 9.96 in |
| Width - Batteries | 10 in |
| Depth | 4.76 in |
| Depth - Batteries | 4-3/4 in |
| Height - Batteries | 6-5/8 in |
| Battery Connection - UPS Batteries | Detachable Cable |
| Item - UPS Battery | Extension UPS Battery |
| Height | 6.61 in |
| Includes | Solid State Circuitry Fuse |
| Product name | SITOP Battery module |
| closed (sealed) | Yes |
| max. ambient temperature | 50 degree_Celsius |
| height including the poles | 168 millimetre |
| nominal voltage | 24 volt |
| min. ambient temperature | -15 degree_Celsius |
| description of product type | Battery module 12 Ah |
| capacity | 12000 milliampere hour |
| battery pack present | Yes |
| Operating Temperature - Minimum | 5 deg F |
| Voltage | 24 V DC |
| Overall Depth | 12-5/8 in |
| UPS Battery Type | Replacement |
| Overall Height | 6-5/16 in |
| Overall Width | 7-11/16 in |
| Operating Temperature - Maximum | 122 deg F |
| Battery Chemistry | Valve Regulated Lead Acid |
| Battery Capacity | 12 Ah |
| Compatible with Manufacturer Model Number | 6EP1931-2DC21, 6EP1931-2DC31, 6EP1931-2DC42, 6EP1931-2EC21, 6EP1931-2EC31, 6EP1931-2EC42, 6EP1931-2FC21, 6EP1931-2FC42 |
| Compatible with Mfr. Model No. | 6EP1931-2DC21, 6EP1931-2DC31, 6EP1931-2DC42, 6EP1931-2EC21, 6EP1931-2EC31, 6EP1931-2EC42, 6EP1931-2FC21, 6EP1931-2FC42 |
| For Use with Mfr Model Number | 6EP1931-2DC21, 6EP1931-2DC31, 6EP1931-2DC42, 6EP1931-2EC21, 6EP1931-2EC31, 6EP1931-2EC42, 6EP1931-2FC21, 6EP1931-2FC42 |
| Package Quantity | 1 |
