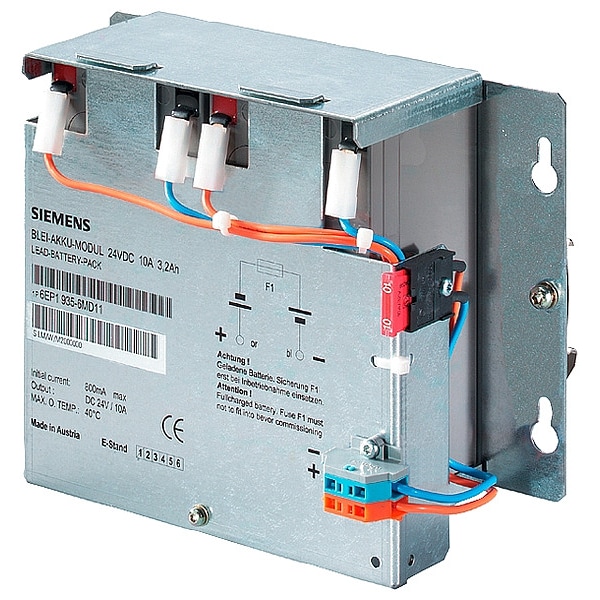

UPS Battery, 12N868, 12N869, 24V DC, 3.2 Ah, Detachable Cable
| Item | UPS Battery |
|---|---|
| For Use With | 12N868,12N869 |
| Voltage - Batteries | 24 V DC |
| Capacity - Batteries | 3.2 Ah |
| Battery Connection | Cable |
| Width - Batteries | 7-1/2 in |
| Backup Time (Half/Full Load) | 180 min./0.5 min. |
| Height | 5.94 in |
| Height - Batteries | 5-15/16 in |
| Battery Connection - UPS Batteries | Detachable Cable |
| Depth | 3.23 in |
| Item - UPS Battery | Extension UPS Battery |
| Depth - Batteries | 3-1/4 in |
| Width | 7.48 in |
| Includes | Solid State Circuitry Fuse |
| closed (sealed) | Yes |
| nominal voltage | 24 volt |
| capacity | 3200 milliampere hour |
| description of product type | Battery module 3.2 Ah |
| min. ambient temperature | -15 degree_Celsius |
| Product name | SITOP Battery module |
| height including the poles | 151 millimetre |
| battery pack present | Yes |
| max. ambient temperature | 50 degree_Celsius |
| Battery Chemistry | Valve Regulated Lead Acid |
| Overall Width | 7-1/2 in |
| Operating Temperature - Minimum | 5 deg F |
| Operating Temperature - Maximum | 122 deg F |
| Voltage | 24 V DC |
| Compatible with Manufacturer Model Number | 6EP1931-2DC21, 6EP1931-2DC31, 6EP1931-2DC42, 6EP1931-2EC21, 6EP1931-2EC31, 6EP1931-2EC42, 6EP1931-2FC42 |
| Battery Capacity | 3.2 Ah |
| Overall Depth | 9-7/16 in |
| Overall Height | 4-13/16 in |
| UPS Battery Type | Replacement |
| Compatible Manufacturer Model Number | 6EP1931-2DC21, 6EP1931-2DC31, 6EP1931-2DC42, 6EP1931-2EC21, 6EP1931-2EC31, 6EP1931-2EC42, 6EP1931-2FC42 |
| Compatible Manufacturer Part Number | 6EP1931-2DC21, 6EP1931-2DC31, 6EP1931-2DC42, 6EP1931-2EC21, 6EP1931-2EC31, 6EP1931-2EC42, 6EP1931-2FC42 |
| Compatible with Mfr. Model No. | 6EP1931-2DC21, 6EP1931-2DC31, 6EP1931-2DC42, 6EP1931-2EC21, 6EP1931-2EC31, 6EP1931-2EC42, 6EP1931-2FC42 |
| For Use with Mfr Model Number | 6EP1931-2DC21, 6EP1931-2DC31, 6EP1931-2DC42, 6EP1931-2EC21, 6EP1931-2EC31, 6EP1931-2EC42, 6EP1931-2FC42 |
| For Use With Mfr. Model Number | 6EP1931-2DC21, 6EP1931-2DC31, 6EP1931-2DC42, 6EP1931-2EC21, 6EP1931-2EC31, 6EP1931-2EC42, 6EP1931-2FC42 |
| Package Quantity | 1 |
