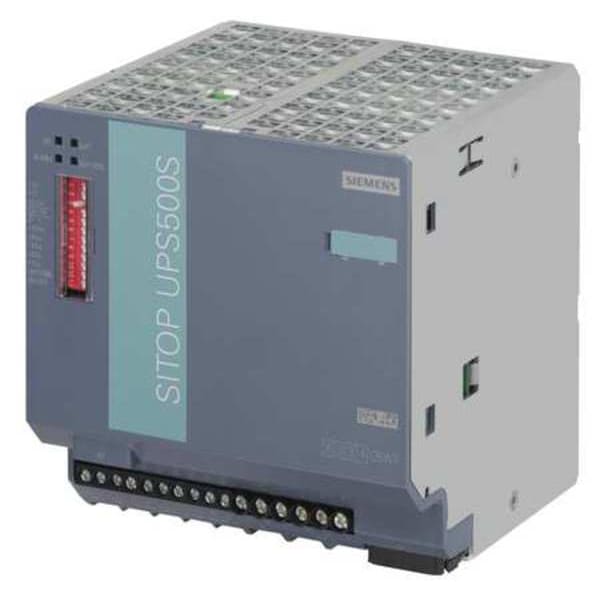

UPS System, 208VA, Standby, Out: 24V DC In: 24V DC
| Item | UPS System |
|---|---|
| VA Rating - UPS Systems | 208 VA |
| UPS Type | Standby |
| Power Rating | 208 VA |
| Mounting | DIN Rail |
| Wattage | 360 W |
| Input Voltage | 24V DC |
| Output Voltage | 24V DC |
| Backup Time (Half/Full Load) | -/16.8 min |
| Outlet Type | Hardwired |
| Medical Grade | No |
| Number of Outlets | 0 |
| Special Features | Maintenance-Free DC UPS with High Capacity Double-Layer Capacitors, Mounting Location Does Not Require Ventilation, Quick Restoration of Buffer Readiness |
| Standards | cCSAus, CE, CSA C22.2 No. 107.1, cULus-Listed, EAC, UL, UL 508 |
| Input Current | 17.5 A / 15.2 A |
| Height | 5 in |
| Transfer Time | 0 msec |
| Fax/Modem Line Protection | No |
| Phase | Not Applicable |
| Display Type | LED |
| NEMA Receptacle Configuration | No Configuration |
| Ports | USB |
| Depth | 5 in |
| Cord Length | No Cord |
| Includes | For 24V DC Back-up in Combination with a 24V DC Switch Mode Power Supply |
| Width | 5 in |
| Hz | N/A |
| NEMA Plug Configuration | Not Applicable |
| Automatic Volts Regulation | No |
| Input Connection | Screw Terminal |
| Voltage | 24 VDC |
| Housing Material | Metal |
| min. rated supply voltage with DC | 22 V |
| max. output voltage | 24.7 V |
| Output current | 15 ampere |
| Protection type IP | IP20 |
| Bridging time | 9 sec |
| min. output voltage | 24 V |
| Design of electrical connection | USB |
| description of product type | Basic unit 5 kWs |
| max. rated supply voltage with DC | 29 volt |
| Supply voltage type | DC |
| Output voltage for SPC is regulated | Yes |
| Output Ports Included | USB |
| Battery Chemistry | Not Applicable |
| Power Rating - Real | 360 W |
| Frequency | Not Applicable |
| Receptacle Configuration | Hardwired |
| Overall Depth | 4.92 in |
| Automatic Voltage Regulation | No Automatic Voltage Regulation |
| Operating Temperature - Maximum | 140 deg F |
| Power Cord Length | Not Applicable |
| Number of Outlets - Surge Only | 0 |
| Operating Temperature - Minimum | 32 deg F |
| Input Current - Maximum | 15 A |
| Data Line Protection | No Data Line Surge Protection |
| Overall Width | 4.72 in |
| Overall Height | 4.92 in |
| Package Quantity | 1 |
