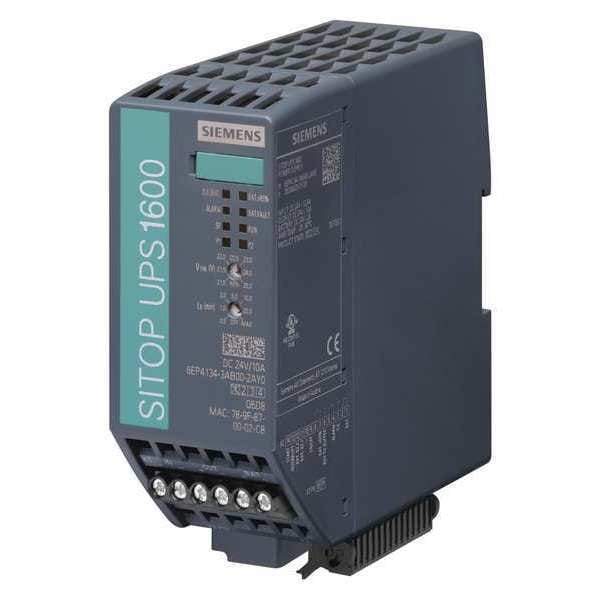

UPS System, 336kVA, Standby, Out: 24V DC In: 24V DC
| Item | UPS System |
|---|---|
| VA Rating - UPS Systems | 336 VA |
| UPS Type | Standby |
| Power Rating | 336 kVA |
| Mounting | DIN Rail |
| Wattage | 240 W |
| Input Voltage | 24V DC |
| Output Voltage | 24V DC |
| Backup Time (Half/Full Load) | 34 min/9 min |
| Outlet Type | Hardwired |
| Medical Grade | No |
| Number of Outlets | 0 |
| Hz | 50/60 Hz |
| Includes | For 24V DC Back-up in Combination with a 24V DC Switch Mode Power Supply |
| Automatic Volts Regulation | No |
| Fax/Modem Line Protection | No |
| Cord Length | No Cord |
| Phase | Not Applicable |
| Height | 2 in |
| Display Type | LED |
| NEMA Plug Configuration | Not Applicable |
| Ports | N/A |
| Width | 6 in |
| Standards | cCSAus, CE, CSA C22.2 No. 107.1, cULus-Listed, EAC, UL, UL 508 |
| Special Features | Ethernet or PROFINET Connection for Diagnostics |
| Transfer Time | 0 msec |
| NEMA Receptacle Configuration | No Configuration |
| Depth | 6 in |
| Input Current | 10 A |
| Input Connection | Hardwired |
| Housing Material | Metal |
| description of product type | DC UPS 24 V / 10 A |
| Supply voltage type | DC |
| Output current | 10 ampere |
| max. output voltage | 27 V |
| Protection type IP | IP20 |
| Output voltage for SPC is regulated | Yes |
| min. output voltage | 18.5 V |
| max. rated supply voltage with DC | 29 volt |
| min. rated supply voltage with DC | 21 V |
| Automatic Voltage Regulation | No Automatic Voltage Regulation |
| Input Current - Maximum | 10 A |
| Operating Temperature - Minimum | -13 deg F |
| Power Cord Length | Not Applicable |
| Overall Width | 1.97 in |
| Data Line Protection | No Data Line Surge Protection |
| Operating Temperature - Maximum | 158 deg F |
| Power Rating - Real | 240 W |
| Package Quantity | 1 |
