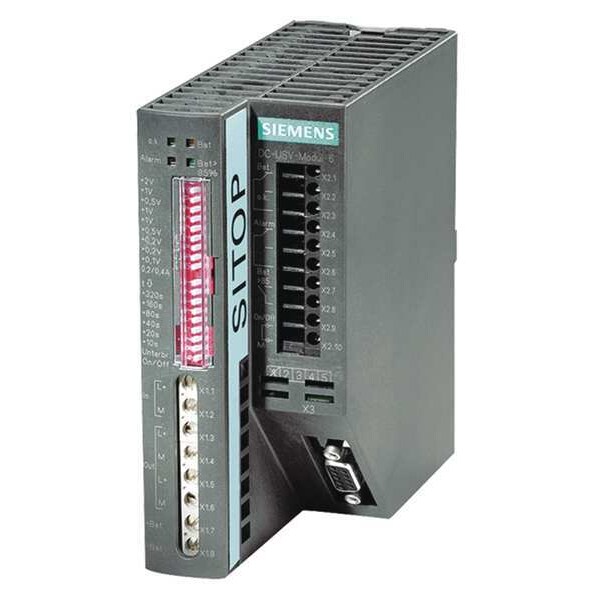

UPS System, 360VA, Standby, Out: 24V DC In: 24V DC
| Item | UPS System |
|---|---|
| VA Rating - UPS Systems | 360 VA |
| UPS Type | Standby |
| Power Rating | 360 VA |
| Mounting | DIN Rail |
| Wattage | 360 W |
| Input Voltage | 24V DC |
| Output Voltage | 24V DC |
| Backup Time (Half/Full Load) | Up to 11 hr |
| Outlet Type | Hardwired |
| Medical Grade | No |
| Number of Outlets | 0 |
| Includes | For 24V DC Back-up in Combination with a 24V DC Switch Mode Power Supply |
| Cord Length | No Cord |
| NEMA Receptacle Configuration | No Configuration |
| Fax/Modem Line Protection | No |
| NEMA Plug Configuration | Not Applicable |
| Ports | USB |
| Transfer Time | 0 msec |
| Height | 5 in |
| Width | 5 in |
| Hz | N/A |
| Phase | Not Applicable |
| Automatic Volts Regulation | No |
| Display Type | LED |
| Special Features | USB Monitoring, Maintenance-Free Battery Modules from 1.2 to 12 A/hr, High Reliability and Availability Due to Monitoring of The Operational Readiness, Battery Feeder, Aging and Charging Status, Extended Life of Loads and Batteries Due to Integrated Battery Management, Settings by Means of DIP Switches: Battery Connection Threshold, End-of-Charge Voltage, Charging Current, Bridging Time, Uninterrupted Transition from Readiness to Buffering Mode |
| Depth | 5 in |
| Input Current | 16.0 A / 15.1 A |
| Standards | cCSAus, CE, CSA C22.2 No. 107.1, cULus-Listed, EAC, UL, UL 508 |
| Input Connection | Screw Terminal |
| Voltage | 24 V DC |
| Housing Material | Metal |
| Design of electrical connection | USB |
| Protection type IP | IP20 |
| Output voltage for SPC is regulated | Yes |
| description of product type | DC UPS 24 V / 15 A |
| min. rated supply voltage with DC | 22 V |
| max. output voltage | 28.5 V |
| max. rated supply voltage with DC | 29 volt |
| Supply voltage type | DC |
| min. output voltage | 19 V |
| Output current | 15 ampere |
| Automatic Voltage Regulation | No Automatic Voltage Regulation |
| Input Current - Maximum | 15 A |
| Overall Width | 1.97 in |
| Data Line Protection | No Data Line Surge Protection |
| Power Rating - Real | 360 W |
| Operating Temperature - Minimum | -13 deg F |
| Operating Temperature - Maximum | 140 deg F |
| Power Cord Length | Not Applicable |
| Output Ports Included | USB |
| Package Quantity | 1 |
