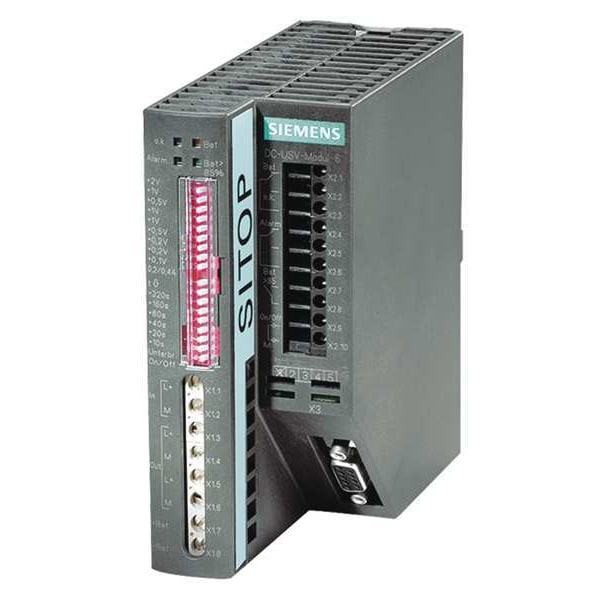

UPS System, 6VA, Standby, Out: 24V DC In: 24V DC
| VA Rating - UPS Systems | 6 VA |
|---|---|
| Item | UPS System |
| UPS Type | Standby |
| Power Rating | 6 VA |
| Mounting | DIN Rail |
| Wattage | 144 W |
| Input Voltage | 24V DC |
| Output Voltage | 24V DC |
| Backup Time (Half/Full Load) | Up to 11 hr |
| Outlet Type | Hardwired |
| Medical Grade | No |
| Number of Outlets | 0 |
| Standards | cCSAus, CE, CSA C22.2 No. 107.1, cULus-Listed, EAC, UL, UL 508 |
| Automatic Volts Regulation | No |
| Width | 5 in |
| Fax/Modem Line Protection | No |
| Ports | USB |
| Phase | Not Applicable |
| Height | 5 in |
| Input Current | 6.85 A / 6.25 A |
| NEMA Plug Configuration | Not Applicable |
| Special Features | USB Monitoring, Maintenance-Free Battery Modules from 1.2 to 12 A/hr, High Reliability and Availability Due to Monitoring of The Operational Readiness, Battery Feeder, Aging and Charging Status, Extended Life of Loads and Batteries Due to Integrated Battery Management, Settings by Means of DIP Switches: Battery Connection Threshold, End-of-Charge Voltage, Charging Current, Bridging Time, Uninterrupted Transition from Readiness to Buffering Mode |
| Cord Length | No Cord |
| Display Type | LED |
| Includes | For 24V DC Back-up in Combination with a 24V DC Switch Mode Power Supply |
| NEMA Receptacle Configuration | No Configuration |
| Transfer Time | 0 msec |
| Depth | 5 in |
| Hz | N/A |
| Input Connection | Screw Terminal |
| Voltage | 24 V DC |
| Housing Material | Metal |
| min. rated supply voltage with DC | 22 V |
| Supply voltage type | DC |
| Output voltage for SPC is regulated | Yes |
| Design of electrical connection | USB |
| description of product type | DC UPS 24 V / 6 A |
| max. output voltage | 28.5 V |
| max. rated supply voltage with DC | 29 volt |
| Protection type IP | IP20 |
| min. output voltage | 19 V |
| Output current | 6 ampere |
| Automatic Voltage Regulation | No Automatic Voltage Regulation |
| Data Line Protection | No Data Line Surge Protection |
| Input Current - Maximum | 6 A |
| Power Cord Length | Not Applicable |
| Overall Width | 5.28 in |
| Operating Temperature - Maximum | 140 deg F |
| Power Rating - Real | 144 W |
| Operating Temperature - Minimum | -13 deg F |
| Output Ports Included | USB |
| Package Quantity | 1 |
