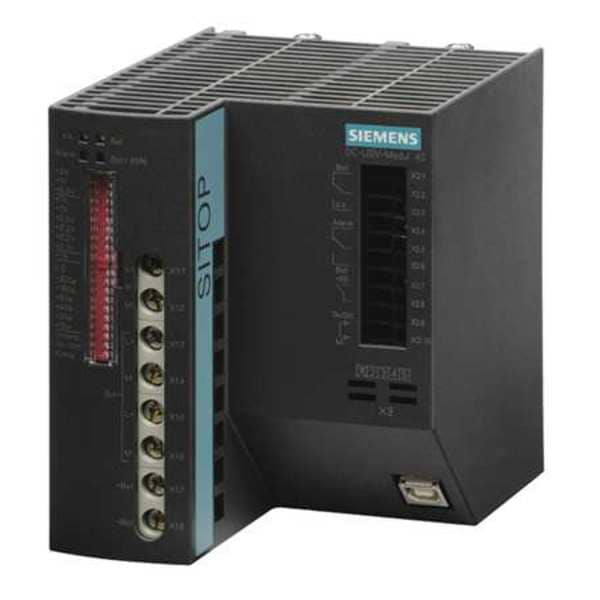

UPS System, 960VA, Standby, Out: 24V DC In: 24V DC
| VA Rating - UPS Systems | 960 VA |
|---|---|
| Item | UPS System |
| UPS Type | Standby |
| Power Rating | 960 VA |
| Mounting | DIN Rail |
| Wattage | 960 W |
| Input Voltage | 24V DC |
| Output Voltage | 24V DC |
| Backup Time (Half/Full Load) | Up to 11 hr |
| Outlet Type | Hardwired |
| Medical Grade | No |
| Number of Outlets | 0 |
| Hz | N/A |
| Display Type | LED |
| Width | 5 in |
| Ports | USB |
| Phase | Not Applicable |
| Automatic Volts Regulation | No |
| Includes | For 24V DC Back-up in Combination with a 24V DC Switch Mode Power Supply |
| Input Current | 42.6 A / 40.2 A |
| Standards | cCSAus, CE, CSA C22.2 No. 107.1, cULus-Listed, EAC, UL, UL 508 |
| Special Features | USB Monitoring, Maintenance-Free Battery Modules from 1.2 to 12 A/hr, High Reliability and Availability Due to Monitoring of The Operational Readiness, Battery Feeder, Aging and Charging Status, Extended Life of Loads and Batteries Due to Integrated Battery Management, Settings by Means of DIP Switches: Battery Connection Threshold, End-of-Charge Voltage, Charging Current, Bridging Time, Uninterrupted Transition from Readiness to Buffering Mode |
| Depth | 5 in |
| Fax/Modem Line Protection | No |
| NEMA Plug Configuration | Not Applicable |
| Transfer Time | 0 msec |
| NEMA Receptacle Configuration | No Configuration |
| Height | 5 in |
| Cord Length | No Cord |
| Input Connection | Screw Terminal |
| Voltage | 24 V DC |
| Housing Material | Metal |
| min. rated supply voltage with DC | 22 V |
| Design of electrical connection | USB |
| max. output voltage | 28.5 V |
| Output voltage for SPC is regulated | Yes |
| max. rated supply voltage with DC | 29 volt |
| min. output voltage | 19 V |
| description of product type | DC UPS 24 V / 40 A |
| Supply voltage type | DC |
| Protection type IP | IP20 |
| Output current | 40 ampere |
| Overall Width | 4.02 in |
| Data Line Protection | No Data Line Surge Protection |
| Input Current - Maximum | 40 A |
| Output Ports Included | USB |
| Operating Temperature - Minimum | -13 deg F |
| Power Rating - Real | 960 W |
| Operating Temperature - Maximum | 140 deg F |
| Automatic Voltage Regulation | No Automatic Voltage Regulation |
| Power Cord Length | Not Applicable |
| Package Quantity | 1 |
