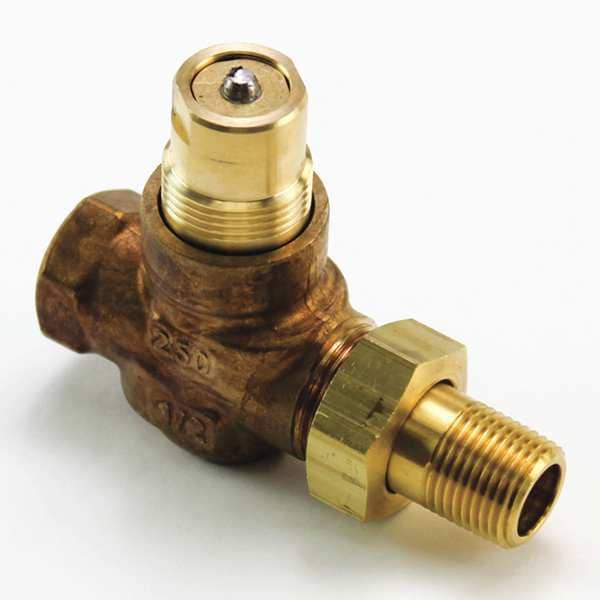

Valve, 1/2" FxUM, N/O BRZ, 1 CV, EQ Percent
| Item | Hydronic Globe Valve |
|---|---|
| Fits Brand | Multiple |
| For Use With | Universal |
| Standards | ANSI 250 |
| Product Type | Valve |
| OEM Replacement Brand | Multiple |
| Operating Temperature - Maximum | 250 deg F |
| Port Connection Gender | Female/Male |
| Manufacturer Series | MT |
| Body Material | Brass |
| Port Connection Size | 1/2 in |
| Trim Material | Brass |
| Packing Material | Ethylene Propylene |
| Port Connection Type | NPT |
| Leakage Rate | 0.01% |
| Installation Orientation | Vertical, Horizontal |
| Flow Characteristic | Equal Percentage |
| Actuator Return Action | Non-Spring Return |
| Overall Length | 1-9/16 in |
| Operating Temperature - Minimum | 35 deg F |
| ANSI Rating | ANSI Leakage Class IV |
| Overall Depth | 4-1/32 in |
| Stem Travel | 7/32 in |
| Stem Material | 303 Stainless Steel |
| Union Connection Size | 1/2 in |
| Overall Height | 3-1/16 in |
| Rangeability | 50:1 |
| Valve Action | Normally Open |
| For Media | Water |
| Body Pattern | Two-Way |
| Coefficient of Volume (Cv) | 1 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
