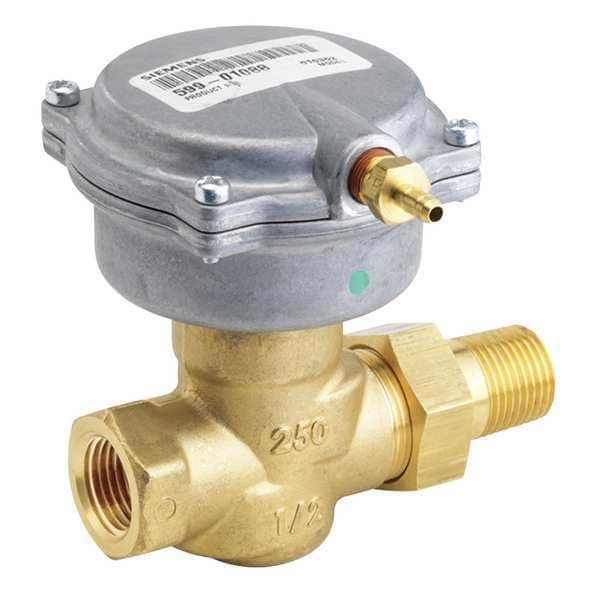

Zone Valve, Globe, 1/2 in. NPT
| Item | Zone Valve |
|---|---|
| Type | Globe |
| For Use With | Water |
| Max. Water Temp. (Deg. F) | 250 Degrees F |
| Includes | Pneumatic Actuator And Control Valve |
| Coefficient of Volume | 2.5 |
| Voltage | 0 V |
| Connection Type/Size (In.) | NPT 1/2 |
| Safe Working Water PSI | 45 psi |
| Specifications | Globe Valve, MT Series, Pneumatic |
| Width (In.) | 4 |
| Agency Compliance | UL |
| Depth (In.) | 1-1/2 |
| Motor Type | Spring Return |
| Standard Pressure Closeoff | 45 |
| Height (In.) | 4 |
| Overall Width | 4 in |
| Port Connection Gender | Female Male |
| Body Pattern | Two-Way |
| Gasket/Plug Material | Not Applicable |
| Application | Convectors |
| Overall Length | 4 in |
| Valve Type | Globe |
| Spring Action | Spring Return |
| Body Material | Brass |
| Actuator Control Pressure - Maximum | 8 psi |
| Close-Off Pressure | 45 psi |
| Overall Depth | 1-1/2 in |
| Valve Action | Normally Open |
| Fluid Temperature - Maximum | 250 deg F |
| Fluid Temperature - Minimum | 35 deg F |
| Bypass Port Coefficient of Volume (Cv) | Not Applicable |
| Port Connection Type | NPT |
| Actuator Return Action | Spring Return |
| Actuator Voltage | Not Applicable |
| Port Connection Size | 1/2 in |
| Includes Actuator | Actuator Included |
| Operating Temperature - Maximum | 122 deg F |
| Operating Temperature - Minimum | 41 deg F |
| Actuator Type | Pneumatic |
| Stem Material | Stainless Steel |
| Installation Orientation | Vertical Preferred |
| Coefficient of Volume (Cv) | 2.5 |
| Actuator Control Pressure - Minimum | 3 psi |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
