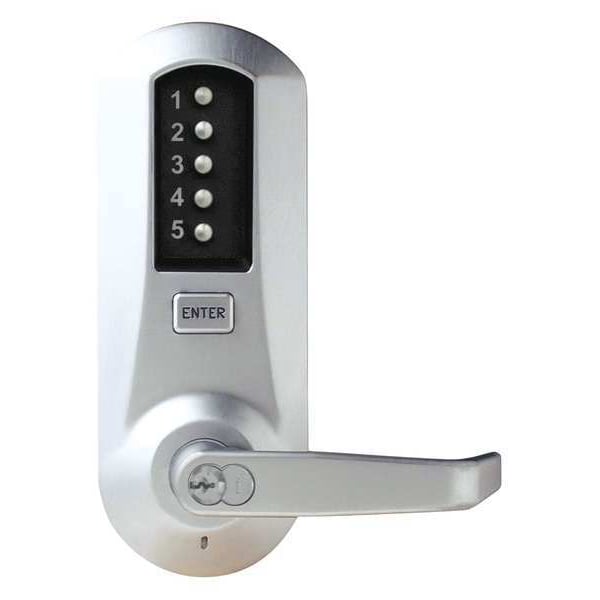

Mechanical Push Button Lockset, Satin Chrome, 1-3/8" to 2-1/4" For Door Thickness, 5 Number of Keys
| Item | Mechanical Push Button Lockset |
|---|---|
| For Door Thickness (In.) | 1-3/8" to 2-1/4" |
| Finish | Satin Chrome |
| Material | Zinc |
| For Use With | Sargent R/C |
| Number of Keys | 5 |
| Manufacturers Warranty Length | 3 yr |
| Includes | Full-Scale Template, Latch, Strike, Strike Plate and Box |
| Fire Rated | 3 hr |
| Inside Depth | 2-1/8 in |
| Electrical/Mechanical | Mechanical |
| Handle Type | Lever |
| Backset | 2 3/4 in |
| Keypad | 5 Button, Vandal Resistant |
| Outside Height | 8-7/8 in |
| Latch Length | 1/2 in |
| Inside Width | 3-3/16 in |
| Standards | ANSI/BHMA Grade 1 Compliant 5220.22M Listed, D.O.D., UL, ULC |
| Outside Depth | 3-13/16 in |
| Door Thickness | 1-3/8 to 2-1/4 in |
| ADA Compliant | Yes |
| Weather Resistant | Yes |
| Hand | Factory Left, Field Reversible |
| Function | Entry with Key Override |
| Grade | 1 |
| Outside Width | 3-3/8 in |
| Series | 5000 |
| Max. User Codes | 1 |
| Case Material | Zinc |
| Inside Height | 8 in |
| Key Override Options | Replaceable Core Sargent |
| Overall Height | 8-7/8 in |
| Overall Width | 3-3/8 in |
| Operation Type | Push Button |
| Type | Mechanical |
| Product Type | Mechanical Push Button Lockset |
| Latch Front Size | 1/2 in |
| Operating Temp. Range | -31 Degrees to 151 Degrees F |
| Max. Proximity Range | At Lock |
| Fire Rating | 3 hr |
| Includes Hardware | Hardware Included |
| Lever Style | Clutch |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| User Codes - Maximum | 1 |
| ANSI Grade | 1 |
| Hand Orientation | Non-Handed |
| Number of Keypad Buttons | 5 |
| Includes Core | Core Not Included |
| Lockset Type | Mechanical |
| Door Thickness - Maximum | 2-1/4 in |
| Lockset Handle Type | Lever |
| Mortise/Cylindrical | Cylindrical |
| Door Thickness - Minimum | 1-3/8 in |
| Lockset Function | Entrance |
| Overall Depth | 3-3/16 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
