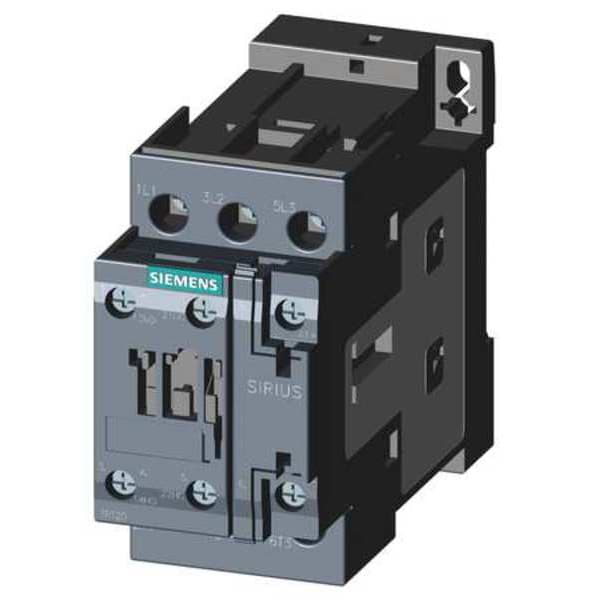

Contactador Magnético IEC, 3 polos, 125 V DC, 32 A.
| Full Load Amps-Inductive | 32 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Action | Non-Reversing |
| Full Load Amps-Resistive | 50 A |
| Number of Poles | 3 |
| Coil Volts | 125 V DC |
| HP @ 1 Phase - 230V | 5 |
| HP @ 1 Phase - 120V | 2 hp |
| Height | 1.77 in |
| Width | 1.77 in |
| HP @ 3 Phase - 208V | 10 hp |
| HP @ 3 Phase - 240V | 10 hp |
| HP @ 3 Phase - 575V | 25 hp |
| Depth | 3.82 in |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 20 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Standards | CCC, CE, CSA, UL |
| Auxiliary Contact Form | 1NC/1NO |
| Frame / Series / Class / Code | Frame B |
| Electrical Connection | Screws |
| Max. Operating Watts | 15 kW (at 400V, AC-3), 28 kW (at 400V, AC-1) |
| Watts Loss | 2.3W (Current Dependent); 5.9W (Current Independent) |
| Phase | 3 |
| Package Quantity | 1 |
