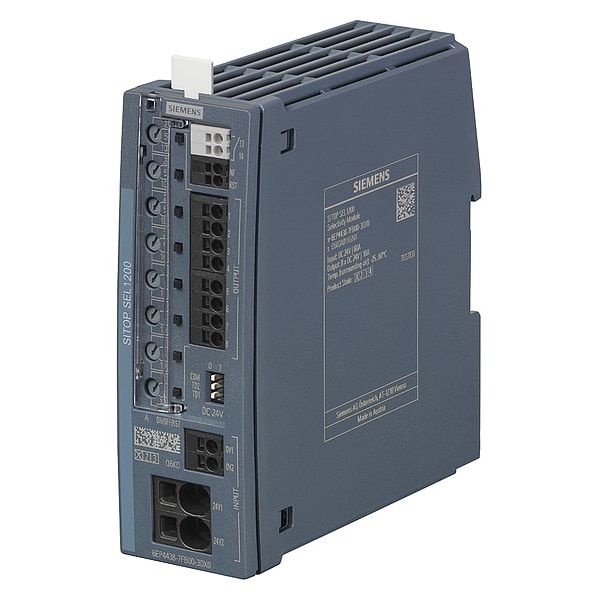

SITOP SEL1200 Selectivity module 8-chann
| Item | Selectivity Module |
|---|---|
| Input Voltage | 24V DC |
| Output Voltage | 24 V DC |
| Voltage Output | 24V DC |
| Amps | 10 per Channel |
| Power Rating | 18W |
| Mounting | DIN Rail |
| Case Material | Plastic |
| Standards | CB Scheme, CE, CSA Approval, cULus Listed (UL 508, CSA C22.2 No. 107.1) File E197259, EAC Approval, UL Listed, UL Recognized (UL 2367) File E328600 |
| Protection | Direct Voltage Overcurrent Protection |
| Output Current | 10 A |
| Status Indicator | Green LED (Output Switched Through), Red LED (Output Switched Off Due to Overcurrent), Yellow LED (Output Switched Off Manually) |
| Peak Amps | 80 A |
| Width | 1.77 in |
| Depth | 4.92 in |
| Height | 5.31 in |
| Temp. Range | -13 to 158 deg F |
| Compatible with Series | SITOP |
| Housing Material | Plastic |
| Overall Width | 1.77 in |
| Overall Depth | 4.92 in |
| Power Rating - Real | 18 W |
| Operating Temperature - Minimum | -40 deg C |
| Operating Temperature - Maximum | 70 deg C |
| Overall Height | 2.24 in |
| Package Quantity | 1 |
