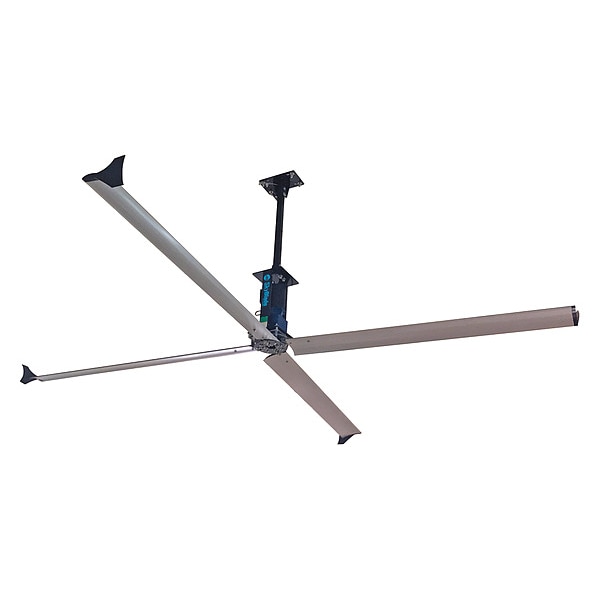

HVLS Ceiling Fan, 20 ft Blade Dia, 4 Blades, Variable Speeds, 460V AC, Powder Coated
| Number of Blades | 4 |
|---|---|
| Blade Diameter | 20 ft |
| Number of Speeds | Variable |
| Voltage | 460V AC |
| Includes | Airfoils, Fan Motor Assembly, Wires, Hardware, Manual Controller, Mounting Brackets, Safety Cable |
| Reversible | Yes |
| Phase | 3 |
| Housing Finish | Powder Coated |
| Blade Material | Aluminum |
| Amps | 3.5 |
| Item | HVLS Ceiling Fan |
| Max. Mounting Height | 40 ft |
| Fan Blade Color | Silver |
| Min. Mounting Height | 16 ft |
| Motor Enclosure | 3-Phase |
| Fan Mounting Location | Ceiling, IBeam |
| Speed Controllable - Fans | Yes |
| Thermal Protection | Auto |
| Bearing Type | Ball |
| Motor Insulation | Class F |
| Fan Watts | 1,610 W |
| RPM | 49 RPM |
| Blade Finish | Anodized Aluminum |
| Fan Housing Color | Black |
| Max. Ambient Temp. | 104 deg F |
| Motor HP | 1 |
| Hz | 50/60 Hz |
| Environmental Applications | Industrial |
| Standards | UL, CAN/CSA, C-TICK, CE |
| Area Covered (Cooling) - Fans | 31,400 sq ft |
| Sound Level | 45 dBA @ 20 ft |
| Area Covered (Destratification) - Fans | 15,700 sq ft |
| Down Rod Outside Dia. | 2 in |
| Light Kit | No Light |
| Mount Type | Bracket |
| Motor Design | 3-Phase |
| Series | STEP |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
