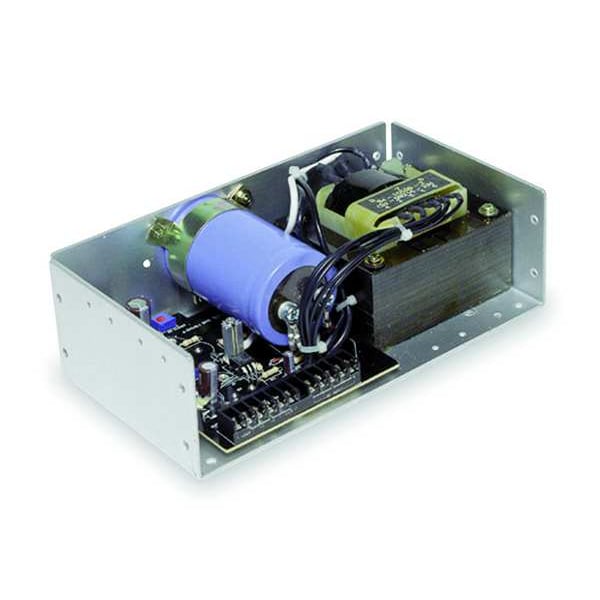

DC Power Supply, 100/120/220/230/240V AC, 12/15V DC, 20.4W, 22.5W, 1.7/1.5A, Panel
| Item | DC Power Supply |
|---|---|
| Input Voltage | 100/120/220/230/240V AC |
| Output Voltage | 12/15V DC |
| Power Rating | 20.4 W, 22.5 W |
| Output Amps | 1.7/1.5A |
| Mounting | Panel |
| Case Material | Metal Case |
| Phase - Electrical | Single |
| Style | Linear |
| Height | 3.99 in |
| Width | 4.84 in |
| Depth | 1.62 in |
| Hz | 47 to 63 Hz |
| Standards | CE, cRUus, CSA |
| Series | Silver Line |
| Features | Automatic Resetting Overload Protection, Easy-To-Install Screw Terminal Connections, Extremely Quiet DC Output For Noise Sensitive Or Analog Circuitry, Fast Transient Response, Ideal For Test Applications, Industry Standard Footprint, Low Noise, Open Frame, Short Circuit Protected |
| Output Noise | Less than 3 mV |
| Operating Temp. Range | 0 to 50 deg C |
| Hold Up Time | 50 msec |
| Output Power | 15-244 W |
| Overload Capability | Automatic current limit foldback |
| Operating Temperature - Maximum | 122 deg F |
| Manufacturer Warranty | 2 yr (Limited) |
| Wire Connection Type | Terminals |
| Operating Temperature - Minimum | 32 deg F |
| Output Power - Rated | 20.4 W, 22.5 W |
| Housing Material | Metal |
| Special Features | Automatic Reset, Short Circuit Protection |
| Current - Output | 1.5 A, 1.7 A |
| Package Quantity | 1 |
