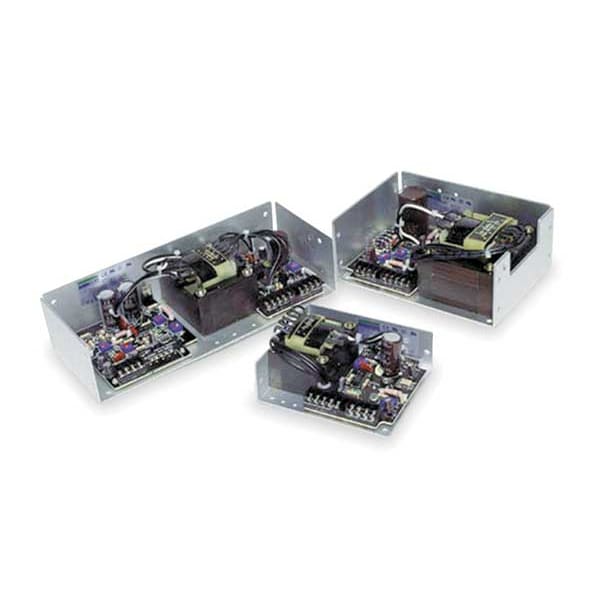

DC Power Supply, 100/120/220/230/240V AC, 12V DC, 40.8W, 3.4A, Panel
| Item | DC Power Supply |
|---|---|
| Input Voltage | 100/120/220/230/240V AC |
| Output Voltage | 12V DC |
| Power Rating | 40.8 W |
| Output Amps | 3.4 A |
| Mounting | Panel |
| Case Material | Metal Case |
| Phase - Electrical | Single |
| Style | Linear |
| Height | 5.62 in |
| Width | 4.87 in |
| Depth | 2-1/2 in |
| Hz | 47 to 63 Hz |
| Series | Silver Line |
| Operating Temp. Range | 0 to 50 deg C |
| Hold Up Time | 50 msec |
| Features | Automatic Resetting Overload Protection, Easy-To-Install Screw Terminal Connections, Extremely Quiet DC Output For Noise Sensitive Or Analog Circuitry, Fast Transient Response, Ideal For Test Applications, Industry Standard Footprint, Low Noise, Open Frame, Short Circuit Protected |
| Standards | CE, cRUus, CSA |
| Output Noise | Less than 3 mV |
| Overload Capability | Automatic current limit foldback |
| Output Power | 15-244 W |
| Wire Connection Type | Terminals |
| Operating Temperature - Maximum | 122 deg F |
| Output Power - Rated | 40.8 W |
| Special Features | Automatic Reset, Short Circuit Protection |
| Operating Temperature - Minimum | 32 deg F |
| Housing Material | Metal |
| Manufacturer Warranty | 2 yr (Limited) |
| Current - Output | 3.4 A |
| Package Quantity | 1 |
