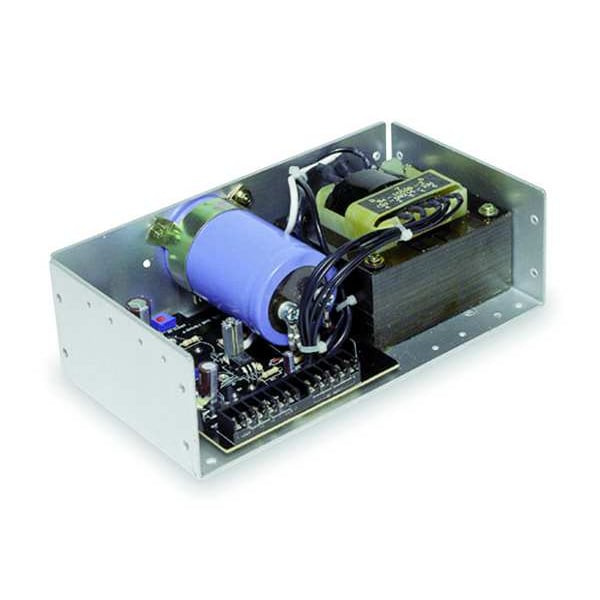

DC Power Supply, 100/120/220/230/240V AC, 5V DC, 15W, 3A, Panel
| Item | DC Power Supply |
|---|---|
| Input Voltage | 100/120/220/230/240V AC |
| Output Voltage | 5V DC |
| Power Rating | 15 W |
| Output Amps | 3 A |
| Mounting | Panel |
| Case Material | Metal Case |
| Phase - Electrical | Single |
| Style | Linear |
| Height | 3.99 in |
| Width | 4.84 in |
| Depth | 1.62 in |
| Hz | 47 to 63 Hz |
| Output Noise | Less than 3 mV |
| Standards | CE, cRUus, CSA |
| Features | Automatic Resetting Overload Protection, Easy-To-Install Screw Terminal Connections, Extremely Quiet DC Output For Noise Sensitive Or Analog Circuitry, Fast Transient Response, Ideal For Test Applications, Industry Standard Footprint, Low Noise, Open Frame, Short Circuit Protected |
| Operating Temp. Range | 0 to 50 deg C |
| Hold Up Time | 50 msec |
| Series | Silver Line |
| Overload Capability | Automatic current limit foldback |
| Output Power | 15-244 W |
| Housing Material | Metal |
| Special Features | Automatic Reset, Short Circuit Protection |
| Operating Temperature - Minimum | 32 deg F |
| Operating Temperature - Maximum | 122 deg F |
| Current - Output | 3 A |
| Output Power - Rated | 15 W |
| Wire Connection Type | Terminals |
| Manufacturer Warranty | 2 yr (Limited) |
| Package Quantity | 1 |
