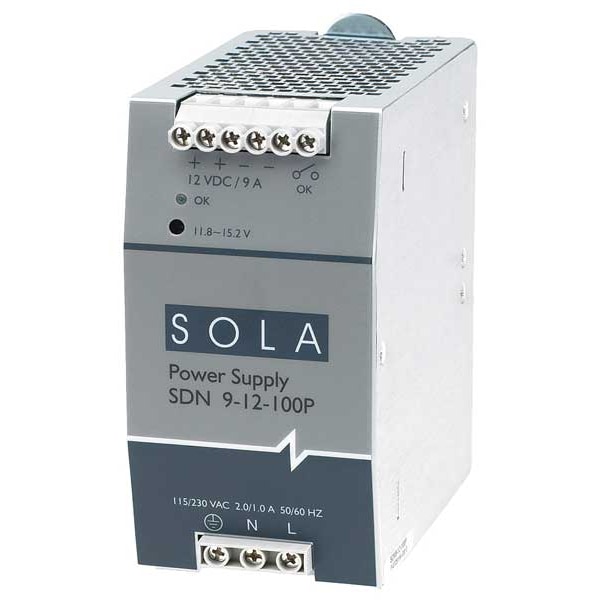

DC Power Supply, 115/230V AC, 12V DC, 108W, 9A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 115/230V AC |
| Output Voltage | 12V DC |
| Power Rating | 108 W |
| Output Amps | 9 A |
| Mounting | DIN Rail |
| Case Material | Metal Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 4.88 in |
| Width | 2.56 in |
| Depth | 4.55 in |
| Hz | 60 Hz |
| Operating Temp. Range | -10 to 60 deg C |
| Hold Up Time | Greater than 20 msec |
| Features | Adjustable Voltage, Improved Metal Mounting Clip, Industrial Grade Design, Narrow Width On Rail For Space Critical Applications, Parallel Capability Standard On All Units, Power Factor Correction, User-Friendly Front Panel |
| Standards | CE, cRUus, cULus, RoHS, Sag Immunity |
| Status Indicator | Green DC OK Signal |
| IP Rating | IP20 |
| Peak Amps | 9.9 |
| Output Noise | Less than 50 mV |
| Series | SDN-P |
| Efficiency | At Full Load: Up to 92% |
| KVA Rating | 30 VA-7.5 kVA |
| Overload Capability | Current limited at 1.65 times rated current |
| NEMA Enclosure Rating | 1 |
| Operating Temperature - Maximum | 140 deg F |
| Wire Connection Type | Terminals |
| Current - Inrush | 20 A |
| Special Features | Adjustable Voltage, Parallel Capability, Powers High Inrush |
| Wire Size - Maximum | 10 AWG |
| Output Power - Rated | 108 W |
| Mean Time Between Failures (MTBF) | 500,000 hr |
| Operating Temperature - Minimum | 14 deg F |
| Current - Peak | 9.9 A |
| Wire Size - Minimum | 16 AWG |
| Current - Output | 9 A |
| Housing Material | Metal |
| Manufacturer Warranty | 5 yr (Limited) |
| Package Quantity | 1 |
