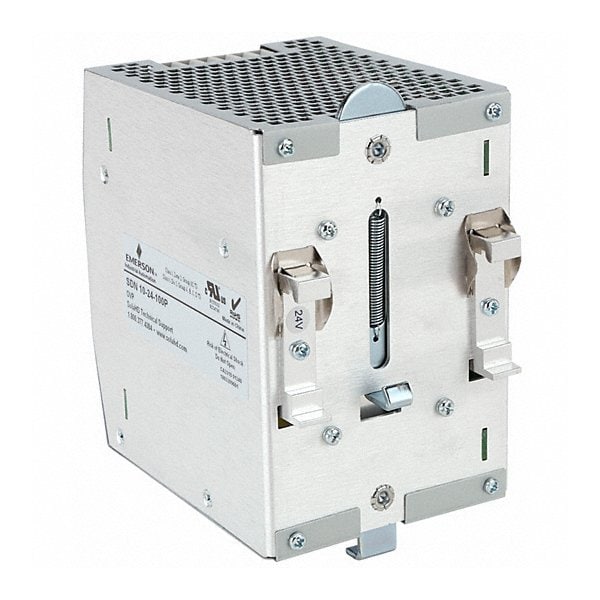

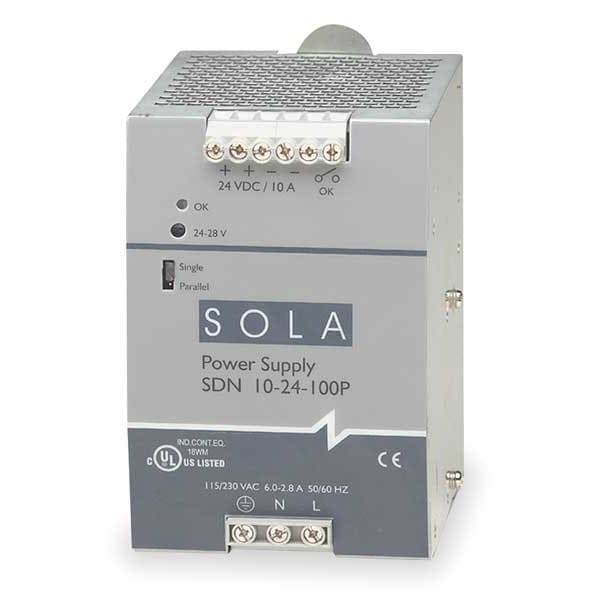

DC Power Supply, 115/230V AC, 22.5 V DC, 28.5 V DC, 240 W, 10 A, DIN Rail/Chassis
| Item | DC Power Supply |
|---|---|
| Input Voltage | 115/230V AC |
| Output Voltage - Nominal | 22.5 V DC, 28.5 V DC |
| Output Power - Rated | 240 W |
| Current - Output | 10 A |
| Mounting | DIN Rail/Chassis |
| Housing Material | Metal |
| Phase | Single |
| Power Supply Style | Switching |
| Overall Height | 4.88 in |
| Overall Width | 3.26 in |
| Overall Depth | 4.55 in |
| Phase - Electrical | Single |
| Hz | 47 to 63 Hz |
| Standards | CE, cRUus, cULus, RoHS, Sag Immunity |
| Depth | 4.55 in |
| Style | Switching |
| Features | Adjustable Voltage, Improved Metal Mounting Clip, Industrial Grade Design, Narrow Width On Rail For Space Critical Applications, Parallel Capability Standard On All Units, Power Factor Correction, User-Friendly Front Panel |
| Output Amps | 10 A |
| IP Rating | IP20 |
| Status Indicator | Green DC OK Signal |
| Output Voltage | 24V DC |
| Output Noise | Less than 50 mV |
| Height | 4.88 in |
| Operating Temp. Range | -10 to 60 deg C |
| Width | 3.26 in |
| Power Rating | 240 W |
| Hold Up Time | Greater than 100 msec |
| Series | SDN-P |
| Case Material | Metal Case |
| Manufacturer Warranty | 5 yr (Limited) |
| NEMA Enclosure Rating | 1 |
| Input Frequency - Maximuim | 63 Hz |
| Input Frequency - Minimum | 47 Hz |
| Special Features | Adjustable Voltage, Parallel Capability, Powers High Inrush |
| Wire Size - Minimum | 16 AWG |
| Wire Connection Type | Terminals |
| Operating Temperature - Maximum | 140 deg F |
| Mean Time Between Failures (MTBF) | 600,000 hr |
| Wire Size - Maximum | 10 AWG |
| Operating Temperature - Minimum | 14 deg F |
| Current - Inrush | 40 A |
| Package Quantity | 1 |
