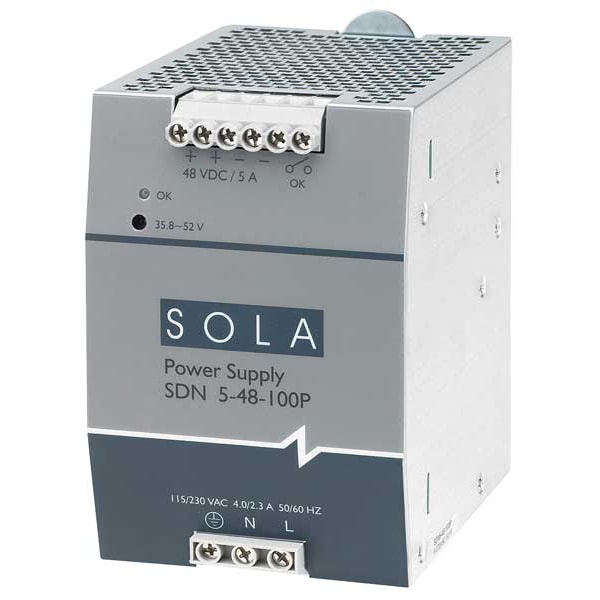

DC Power Supply, 115/230V AC, 48V DC, 240W, 5A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 115/230V AC |
| Output Voltage | 48V DC |
| Power Rating | 240 W |
| Output Amps | 5 A |
| Mounting | DIN Rail |
| Case Material | Metal Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 4.88 in |
| Width | 3.23 in |
| Depth | 4.55 in |
| Hz | 60 Hz |
| Output Noise | Less than 50 mV |
| Series | SDN-P |
| Peak Amps | 5.5 |
| Hold Up Time | Greater than 20 msec |
| Operating Temp. Range | -10 to 60 deg C |
| Features | Adjustable Voltage, Improved Metal Mounting Clip, Industrial Grade Design, Narrow Width On Rail For Space Critical Applications, Parallel Capability Standard On All Units, Power Factor Correction, User-Friendly Front Panel |
| Standards | CE, cRUus, cULus, RoHS, Sag Immunity |
| Status Indicator | Green DC OK Signal |
| IP Rating | IP20 |
| Overload Capability | < 16-60 Vdc |
| Output Power | 60-240 W |
| UL Recognized Component, Haz. Loc. | Class I, Division 2, Groups A, B, C, D |
| Housing Material | Metal |
| Wire Size - Minimum | 16 AWG |
| Manufacturer Warranty | 5 yr (Limited) |
| Wire Connection Type | Terminals |
| Current - Inrush | 40 A |
| Wire Size - Maximum | 10 AWG |
| Operating Temperature - Minimum | 14 deg F |
| Special Features | Adjustable Voltage, Parallel Capability, Powers High Inrush |
| Operating Temperature - Maximum | 140 deg F |
| Current - Peak | 5.5 A |
| Mean Time Between Failures (MTBF) | 500,000 hr |
| NEMA Enclosure Rating | 1 |
| Current - Output | 5 A |
| Output Power - Rated | 240 W |
| Package Quantity | 1 |
