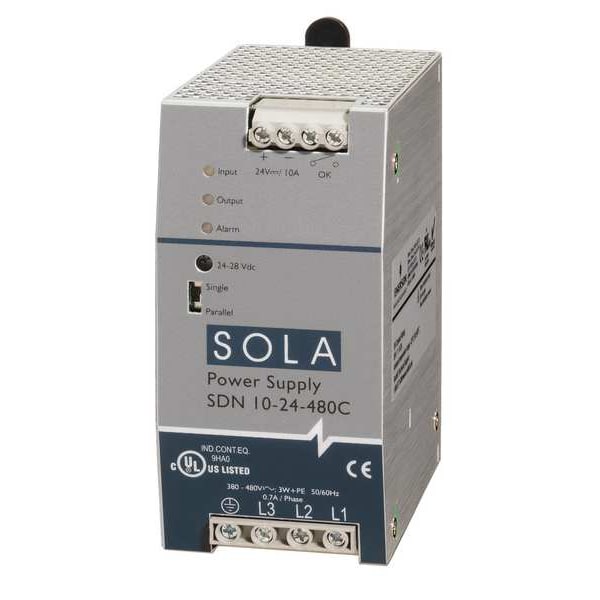

DC Power Supply, 380/480V AC, 240 W, 10 A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 380/480V AC |
| Output Power - Rated | 240 W |
| Current - Output | 10 A |
| Mounting | DIN Rail |
| Housing Material | Metal |
| Output Voltage | 24V DC |
| Case Material | Metal Case |
| Depth | 4.36 in |
| Phase - Electrical | Three |
| Hold Up Time | Greater than 40 msec |
| Standards | ATEX Directive Ex II 3 G, Ex ec nC IIC Gc, Class I, Zone 2, AEx nA nC IIC, Ex nA nC IIC, IECEx Certified Ex ec nC IIC Gc, UL Class I, Division 2, Groups A, B, C, D |
| Peak Amps | 12 |
| Status Indicator | LED |
| Hz | 47 to 63 Hz |
| Output Noise | Less than 100 mV |
| Operating Temp. Range | -25 to 60 deg C |
| Width | 2.36 in |
| Series | SDN-C |
| Output Amps | 10 A |
| Features | Compact Packaging To Save Space On The DIN Rail, High MTBF Means High Reliability and Long Life, Higher Efficiency Saves Energy and Lowers Amount Of Heat Generated In Panel, Parallel Capability Standard, Power Factor Correction, Powerboost Overload Capability To Start High Inrush Loads, User Adjustable Output Voltage Accessible Via Front Face |
| Power Rating | 240 W |
| Style | Switching |
| Height | 4.85 in |
| IP Rating | IP20 |
| UL Recognized Component, Haz. Loc. | Class I, Division 2, Groups A, B, C, D; Class I, Zone 2, AEx nA nC IIC, Ex nA nC IIC |
| Overload Capability | > 30.5 but < 33 Vdc, auto recovery |
| Output Power | 120-960 W |
| Mean Time Between Failures (MTBF) | 1,400,000 hr |
| Input Frequency - Nominal | 50/60 Hz |
| Wire Connection Type | Terminals |
| Operating Temperature - Maximum | 158 deg F |
| Manufacturer Warranty | 5 yr (Limited) |
| Wire Size - Minimum | 16 AWG |
| Special Features | Parallel Capability, Power Boost Function |
| Current - Peak | 12 A |
| Operating Temperature - Minimum | -40 deg F |
| Current - Inrush | 25 A |
| Wire Size - Maximum | 10 AWG |
| Package Quantity | 1 |
