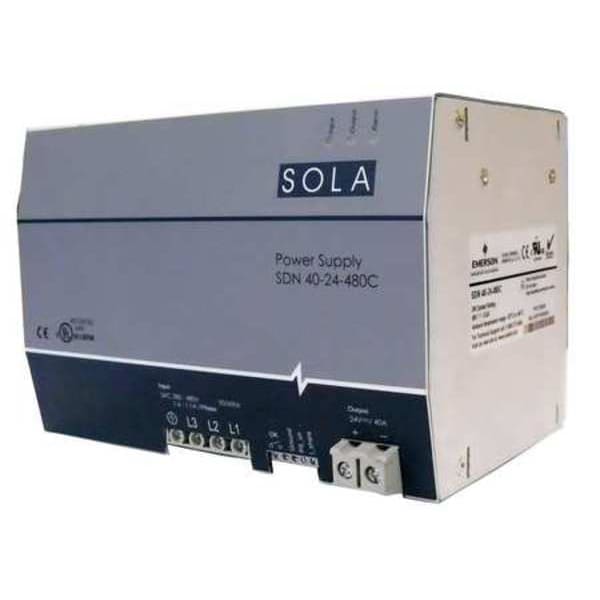

DC Power Supply, 380/480V AC, 24V DC, 960W, 40A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 380/480V AC |
| Output Voltage | 24V DC |
| Power Rating | 960 W |
| Output Amps | 40 A |
| Mounting | DIN Rail |
| Case Material | Metal Case |
| Phase - Electrical | Three |
| Style | Switching |
| Height | 4.85 in |
| Width | 7.09 in |
| Depth | 4.66 in |
| Hz | 47 to 63 Hz |
| Output Noise | Less than 100 mV |
| Peak Amps | 45 |
| Standards | ATEX Directive Ex II 3 G, Ex ec nC IIC Gc, Class I, Zone 2, AEx nA nC IIC, Ex nA nC IIC, IECEx Certified Ex ec nC IIC Gc, UL Class I, Division 2, Groups A, B, C, D |
| Series | SDN-C |
| Hold Up Time | Greater than 20 msec |
| Status Indicator | LED |
| Features | Compact Packaging To Save Space On The DIN Rail, High MTBF Means High Reliability and Long Life, Higher Efficiency Saves Energy and Lowers Amount Of Heat Generated In Panel, Parallel Capability Standard, Power Factor Correction, Powerboost Overload Capability To Start High Inrush Loads, User Adjustable Output Voltage Accessible Via Front Face |
| Operating Temp. Range | -25 to 60 deg C |
| IP Rating | IP20 |
| UL Recognized Component, Haz. Loc. | Class I, Division 2, Groups A, B, C, D; Class I, Zone 2, AEx nA nC IIC, Ex nA nC IIC |
| Overload Capability | > 30.5 but < 33 Vdc, auto recovery |
| Output Power | 120-960 W |
| Mean Time Between Failures (MTBF) | 600,000 hr |
| Manufacturer Warranty | 5 yr (Limited) |
| Input Frequency - Nominal | 50/60 Hz |
| Output Power - Rated | 960 W |
| Wire Size - Maximum | 10 AWG |
| Current - Output | 40 A |
| Wire Connection Type | Terminals |
| Wire Size - Minimum | 16 AWG |
| Operating Temperature - Minimum | -40 deg F |
| Special Features | Parallel Capability, Power Boost Function |
| Housing Material | Metal |
| Current - Peak | 45 A |
| Operating Temperature - Maximum | 158 deg F |
| Package Quantity | 1 |
