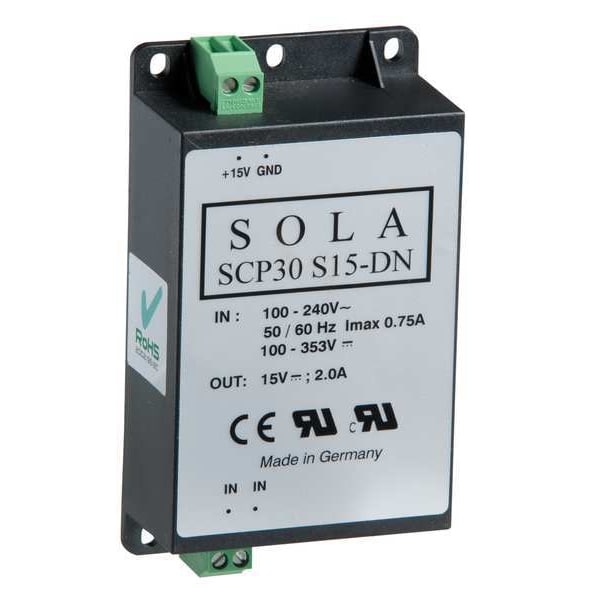

DC Power Supply, 85/264V AC, 15V DC, 30W, 2A, DIN Rail/Chassis
| Item | DC Power Supply |
|---|---|
| Input Voltage | 85/264V AC |
| Output Voltage | 15V DC |
| Power Rating | 30 W |
| Output Amps | 2 A |
| Mounting | DIN Rail/Chassis |
| Case Material | Metal Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 4.71 in |
| Width | 2.55 in |
| Depth | 1.29 in |
| Hz | 50/60 Hz |
| Series | SCP |
| Hold Up Time | Greater than 50 msec |
| Output Noise | Less Than or Equal to 1% |
| Operating Temp. Range | -25 to 60 deg C |
| Features | Encapsulated Design To Resist Environment, International Approvals For Global Use, Rugged, Terminations Are Also Easy To Access (AC and DC Terminations Are Well Separated) and Simple To Wire |
| IP Rating | IP20 |
| Peak Amps | 2.6 |
| Status Indicator | DC OK Signal, Green LED |
| Standards | CE, cRUus |
| Output Power | 30W |
| Current - Output | 2 A |
| Mean Time Between Failures (MTBF) | 800,000 hr |
| Input Frequency - Nominal | 50/60 Hz |
| NEMA Enclosure Rating | 1 |
| Housing Material | Metal |
| Output Power - Rated | 30 W |
| Current - Peak | 2.6 A |
| Operating Temperature - Maximum | 149 deg F |
| Operating Temperature - Minimum | -13 deg F |
| Manufacturer Warranty | 5 yr (Limited) |
| Package Quantity | 1 |
