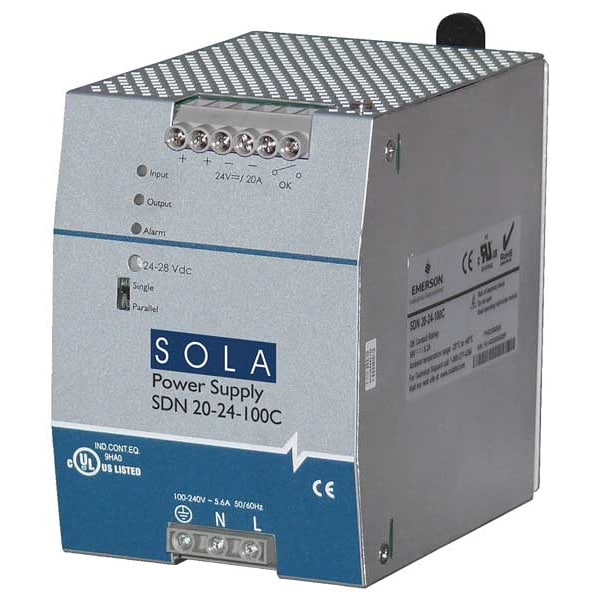

DC Power Supply, 85/264V AC, 480 W, 20 A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 85/264V AC |
| Output Power - Rated | 480 W |
| Current - Output | 20 A |
| Mounting | DIN Rail |
| Housing Material | Metal |
| Depth | 4.98 in |
| Width | 3.42 in |
| Peak Amps | 22 |
| Phase - Electrical | Single |
| Output Noise | Less than 100 mV |
| Height | 4.85 in |
| Style | Switching |
| Series | SDN-C |
| Hz | 60 Hz |
| Status Indicator | LED |
| Features | Compact Packaging To Save Space On The DIN Rail, High MTBF Means High Reliability and Long Life, Higher Efficiency Saves Energy and Lowers Amount Of Heat Generated In Panel, Parallel Capability Standard, Power Factor Correction, Powerboost Overload Capability To Start High Inrush Loads, User Adjustable Output Voltage Accessible Via Front Face |
| Output Amps | 20 A |
| Case Material | Metal Case |
| Power Rating | 480 W |
| Operating Temp. Range | -25 to 60 deg C |
| Output Voltage | 24V DC |
| Standards | ATEX Directive Ex II 3 G, Ex ec nC IIC Gc, Class I, Zone 2, AEx nA nC IIC, Ex nA nC IIC, IECEx Certified Ex ec nC IIC Gc, UL Class I, Division 2, Groups A, B, C, D |
| Hold Up Time | Greater than 20 msec |
| IP Rating | IP20 |
| Output Power | 120-960 W |
| Overload Capability | > 30.5 but < 33 Vdc, auto recovery |
| UL Recognized Component, Haz. Loc. | Class I, Division 2, Groups A, B, C, D; Class I, Zone 2, AEx nA nC IIC, Ex nA nC IIC |
| Mean Time Between Failures (MTBF) | 800,000 hr |
| Operating Temperature - Minimum | -40 deg F |
| Special Features | Parallel Capability, Power Boost Function |
| Wire Size - Maximum | 10 AWG |
| Wire Size - Minimum | 16 AWG |
| Wire Connection Type | Terminals |
| Manufacturer Warranty | 5 yr (Limited) |
| Current - Peak | 22 A |
| Current - Inrush | 11.5 A |
| Operating Temperature - Maximum | 158 deg F |
| Package Quantity | 1 |
