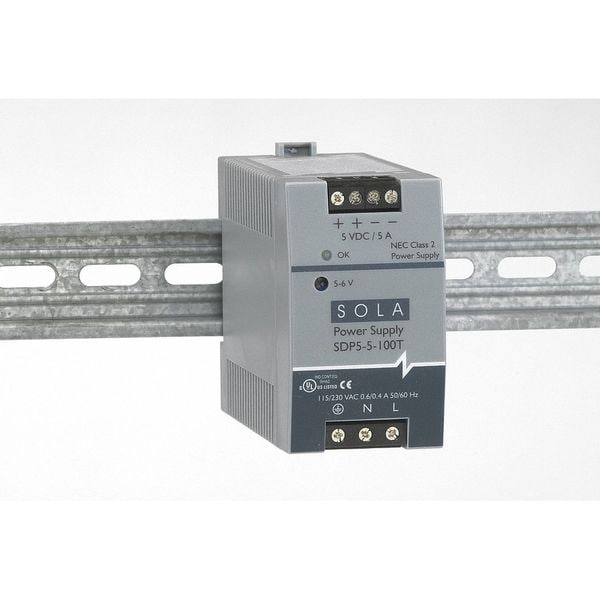

DC Power Supply, 85/264V AC, 5/6V DC, 100W, 5A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 85/264V AC |
| Output Voltage | 5/6V DC |
| Power Rating | 100 W |
| Output Amps | 5 A |
| Mounting | DIN Rail |
| Case Material | Plastic Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 2.95 in |
| Width | 1.77 in |
| Depth | 3.58 in |
| Hz | 47 to 63 Hz |
| IP Rating | IP20 |
| Output Noise | Less than 50 mV |
| Series | SDP |
| Operating Temp. Range | -10 to 60 deg C |
| Standards | CE, cRUus, CSA |
| Status Indicator | Green LED |
| Features | Adjustable Output, Low Output Noise, No Tools Required For Mounting, Overvoltagea And Short Circuit Protection, Powerboost(TM) Industrial Overload Design, Screw Terminal Connections, Ultra Slim 15W Footprint |
| Hold Up Time | Greater than 25 msec |
| Output Power | 25-100 W |
| Overload Capacity | SDP-T: > 30 Vdc, but < 33 Vdc, auto recovery. SDP-LT: > 26 Vdc, but < 27.2 Vdc, auto recovery. SDP-RT: > 30 Vdc, but < 33 Vdc, auto recovery |
| UL Recognized Component, Haz. Loc. | Class I, Division 2, Groups A, B, C, D |
| Operating Temperature - Minimum | 14 deg F |
| Wire Size - Maximum | 12 AWG |
| Current - Output | 5 A |
| Wire Size - Minimum | 20 AWG |
| Wire Connection Type | Terminals |
| Special Features | Adjustable Output Voltage, Short Circuit Protection, Overvoltage Protection, Power Boost Function |
| Output Power - Rated | 25 W |
| Manufacturer Warranty | 3 yr (Limited) |
| Mean Time Between Failures (MTBF) | 500,000 hr |
| Housing Material | Plastic |
| NEMA Enclosure Rating | 1 |
| Operating Temperature - Maximum | 158 deg F |
| Package Quantity | 1 |
