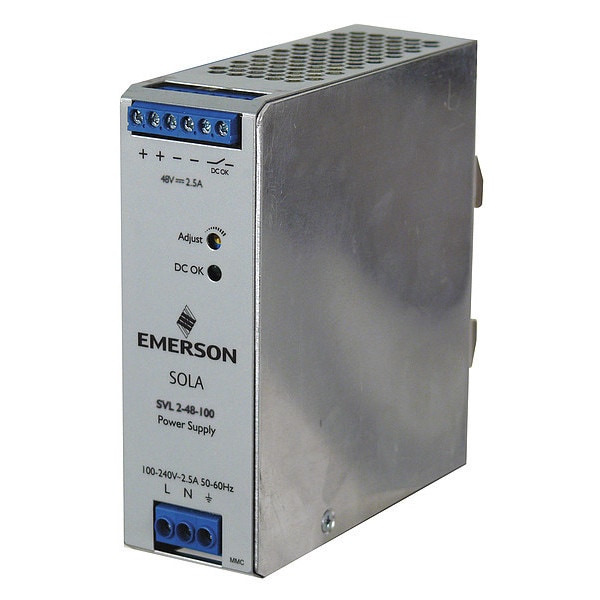

Din Rail Power Supply, 2.5 A, 120 W
| Item | DC Power Supply |
|---|---|
| Power Rating | 120 W |
| Status Indicator | Green LED (OK) |
| Style | Switching |
| Case Material | Metal Case |
| Mounting | DIN Rail |
| Height | 4.84 in |
| Depth | 4.63 in |
| Output Voltage | 48 V DC |
| Phase - Electrical | Single |
| Peak Amps | 20, 40 |
| Features | Convection Cooling, LED, Over Temperature Protection, Over Voltage Protection, Overload Protection, Power Factor Correction, Short Circuit Protection |
| Standards | CE, cRUus, cULus |
| Hold Up Time | 10 msec, 16 msec |
| Width | 1.57 in |
| Operating Temp. Range | -20 to 70 deg C |
| Output Amps | 2.5 |
| Hz | 50 Hz to 60 Hz |
| Input Voltage | 100 to 240V AC |
| Housing Material | Plastic |
| Overall Height | 4.84 in |
| Start Up Time - Maximum | 1,000 msec |
| Mean Time Between Failures (MTBF) | 700,000 hr |
| Power Supply Style | Switching |
| Manufacturer Warranty | 2 yr Limited |
| Output Power - Rated | 120 W |
| Output Voltage - Minimum | 44 V DC |
| Input Frequency - Nominal | 50/60 Hz |
| Current - Output | 2.5 A |
| Phase | Single |
| Output Noise - Maximum | 120 mV |
| Series | SVL |
| Special Features | Convection Cooling, Overload Protection, Overtemperature Protection, Overvoltage Protection, Power Factor Correction, Protection Diagnostics, Short Circuit Protection |
| Overall Depth | 4.63 in |
| IP Rating | IP20 |
| Operating Temperature - Maximum | 158 Degrees F |
| Overall Width | 1.57 in |
| Output Voltage - Nominal | 48 V DC |
| Operating Temperature - Minimum | -4 Degrees F |
| Country of Origin (subject to change) | Thailand |
| Package Quantity | 1 |
