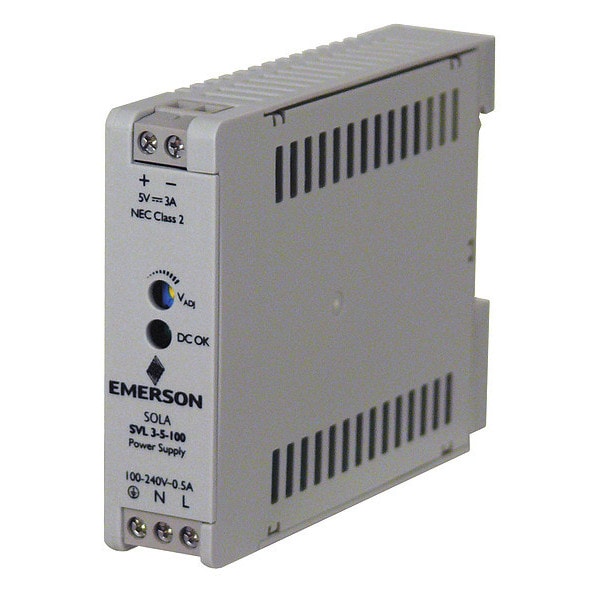

Din Rail Power Supply, 3 A, 15 W
| Item | DC Power Supply |
|---|---|
| Operating Temp. Range | -20 to 70 deg C |
| Standards | CE, cRUus, cULus |
| Power Rating | 15 W |
| Features | Convection Cooling, LED, Over Temperature Protection, Over Voltage Protection, Overload Protection, Power Factor Correction, Short Circuit Protection |
| Height | 2.95 in |
| Hold Up Time | 100 msec, 20 msec |
| Output Amps | 3 |
| Phase - Electrical | Single |
| Input Voltage | 100 to 240V AC |
| Hz | 50 Hz to 60 Hz |
| Peak Amps | 35 A at 115 V AC, 65 A at 230 V AC |
| Mounting | DIN Rail |
| Status Indicator | Green LED (OK) |
| Output Voltage | 5V DC |
| Width | 0.82 in |
| Depth | 3.52 in |
| Style | Switching |
| Case Material | Metal Case |
| Overall Height | 2.95 in |
| Series | SVL |
| Housing Material | Plastic |
| Operating Temperature - Maximum | 158 Degrees F |
| Power Supply Style | Switching |
| Output Voltage - Minimum | 5 V DC |
| Input Frequency - Nominal | 50/60 Hz |
| Current - Output | 3 A |
| Mean Time Between Failures (MTBF) | 350,000 hr |
| Phase | Single |
| Start Up Time - Maximum | 3,000 msec |
| IP Rating | IP20 |
| Operating Temperature - Minimum | -4 Degrees F |
| Output Power - Rated | 15 W |
| Special Features | Convection Cooling, Overload Protection, Overtemperature Protection, Overvoltage Protection, Power Factor Correction, Protection Diagnostics, Short Circuit Protection |
| Overall Depth | 3.52 in |
| Overall Width | 0.82 in |
| Output Noise - Maximum | 75 mV |
| Output Voltage - Nominal | 5 V DC |
| Manufacturer Warranty | 2 yr Limited |
| Country of Origin (subject to change) | India |
| Package Quantity | 1 |
