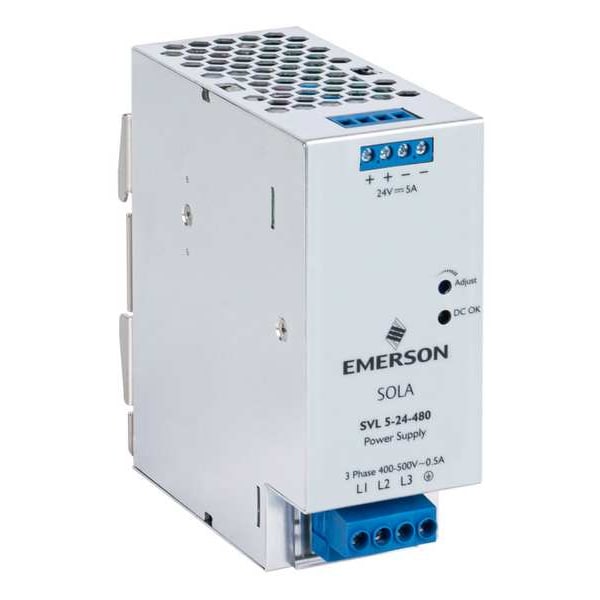

Din Rail Power Supply, 5 A, 120 W
| Item | DC Power Supply |
|---|---|
| Case Material | Metal Case |
| Height | 4.76 in |
| Mounting | DIN Rail |
| Hz | 50 Hz to 60 Hz |
| Status Indicator | Green LED (OK) |
| Features | Convection Cooling, LED, Over Temperature Protection, Over Voltage Protection, Overload Protection, Power Factor Correction, Short Circuit Protection |
| Output Voltage | 24V DC |
| Width | 1.97 in |
| Output Amps | 5 |
| Power Rating | 120 W |
| Hold Up Time | Greater Than 20 msec at 3 x 400 V AC, Greater Than 40 msec at 3 x 500 V AC |
| Depth | 4.62 in |
| Standards | CE, cRUus, cULus |
| Phase - Electrical | Three |
| Operating Temp. Range | -25 to 80 deg C |
| Input Voltage | 400/500V AC |
| Peak Amps | 30 A |
| Style | Switching |
| Series | SVL |
| Phase | Three |
| Output Power - Rated | 120 W |
| Overall Width | 1.97 in |
| Power Supply Style | Switching |
| Output Voltage - Nominal | 24 V DC |
| Special Features | Convection Cooling, Overload Protection, Overtemperature Protection, Overvoltage Protection, Power Factor Correction, Protection Diagnostics, Short Circuit Protection |
| Overall Height | 4.76 in |
| Input Frequency - Nominal | 50/60 Hz |
| Output Voltage - Minimum | 24 V DC |
| Current - Output | 5 A |
| Overall Depth | 4.62 in |
| Manufacturer Warranty | 2 yr Limited |
| Mean Time Between Failures (MTBF) | 800,000 hr |
| IP Rating | IP20 |
| Operating Temperature - Minimum | -4 Degrees F |
| Housing Material | Metal |
| Operating Temperature - Maximum | 158 Degrees F |
| Country of Origin (subject to change) | India |
| Package Quantity | 1 |
