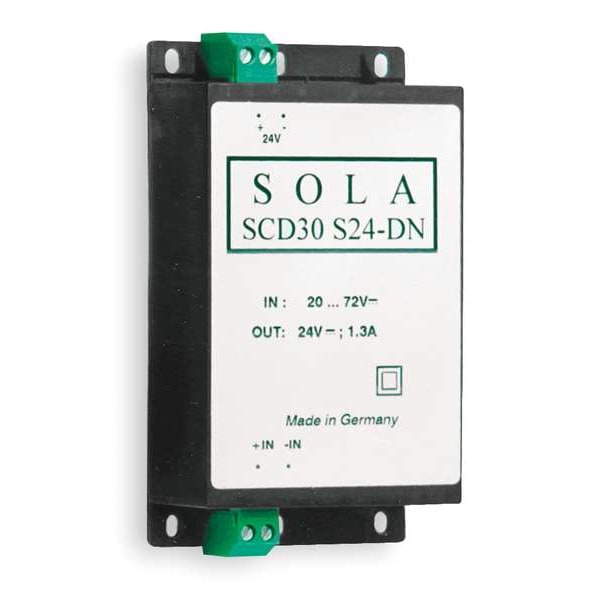

Industrial DC to DC Converter, 20-72V DC to 24V DC, 30W, 0 Hz, DIN Rail/Chassis, Metal
| Item | Industrial DC to DC Converter |
|---|---|
| Converts | 20-72V DC to 24V DC |
| VA Rating | 30 W |
| Enclosure Material | Metal |
| Mounting | DIN Rail, Chassis |
| Frequency | 0 Hz |
| Phase | Single |
| Height | 4.71 in |
| Width | 2.55 in |
| Depth | 1.29 in |
| Style | Switching |
| Status Indicator | LED |
| Series | SCD |
| IP Rating | IP20 |
| Phase - Electrical | Single |
| Output Voltage | 24 V DC |
| Standards | CE, cRUus, cULus |
| NEMA Rating | 1 |
| Operating Temp. Range | -25 to 65 deg C |
| Input Voltage | 20 to 72V DC |
| Hold Up Time | Greater Than 10 msec |
| Output Noise | Less Than 3mV |
| Output Amps | 1.3 |
| Features | Rugged, Encapsulated Design To Resist Environment, Terminations Are Also Easy To Access And Simple To Wire, With High Reliability And Wide Input Range, These Units Can Operate Through The Most Difficult Factory-Floor Conditions Around The Globe |
| Temp. Range | -25 to 65°C |
| Operating Temperature | -25°C to +65°C |
| Output Power | 30 W |
| Output Voltage Range | 5-48 Vdc |
| Number of Phases | Single |
| Power Supply Style | Switching |
| Manufacturer Warranty | 5 yr Limited |
| Mean Time Between Failures (MTBF) | 800,000 hr |
| Output Voltage - Maximum | Not Applicable |
| Special Features | Galvanic Isolation |
| NEMA Enclosure Rating | 1 |
| Wire Connection Type | Screw Terminals |
| Output Voltage - Minimum | Not Applicable |
| Housing Material | Metal |
| Current - Output | 1.3 A |
| Operating Temperature - Maximum | 149 deg F |
| Output Voltage - Nominal | 24 V DC |
| Output Power - Rated | 30 W |
| Operating Temperature - Minimum | -13 deg F |
| Package Quantity | 1 |
