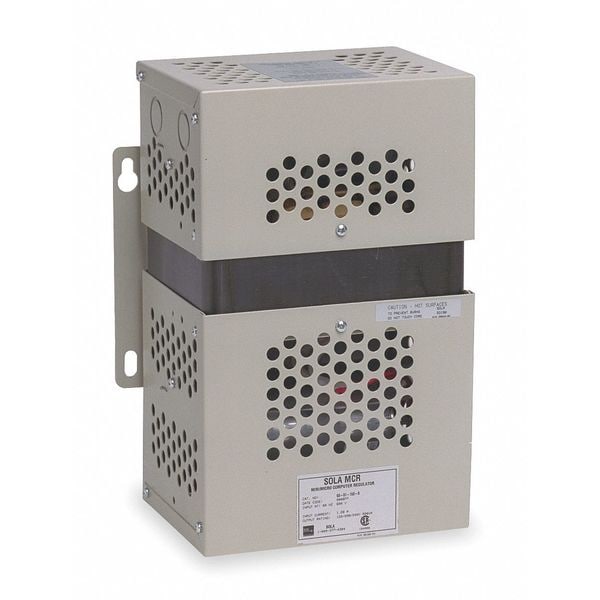

Power Conditioner, 12.5A @ 240V AC, 14.4A @ 208V AC, 25A @ 120V AC, 6.3A @ 480V AC Max Amps
| Item | Power Conditioner |
|---|---|
| Max. Amps | 12.5A @ 240V AC, 14.4A @ 208V AC, 25A @ 120V AC, 6.3A @ 480V AC |
| Input Voltage | 120/208/240/480V |
| Output Voltage | 120/208/240V |
| Power Rating | 3 kVA |
| Output Watts | 3,000 W |
| Hardwired/Corded | Hardwired |
| Height | 19 in |
| Depth | 9 in |
| Width | 13 in |
| Phase | 1 |
| Voltage Regulation % | +/-3 |
| Number of Outlets | 0 |
| Mounting Type | Panel Mount |
| Features | Harmonic Filtering |
| Standards | UL1012/CSA |
| Operating Temperature | -20DegC to +50DegC |
| KVA Rating | 120 VA-15 kVA |
| Efficiency | At Full Load: Up to 92% |
| Hertz | 50, 60 |
| Overload Capability | Current limited at 1.65 times rated current |
| Input Voltage Range | 50 Hz: 110-415 Vac; 60 Hz: 120-600 Vac |
| Operating Temperature - Maximum | 122 deg F |
| Maximum Current | 25 A |
| Voltage Regulation | +/-3% |
| Housing Material | Galvanized Sheet Metal |
| Manufacturer Warranty | 10 + 2 yr |
| Operating Temperature - Minimum | -4 deg F |
| Frequency | 50/60 Hz |
| Package Quantity | 1 |
