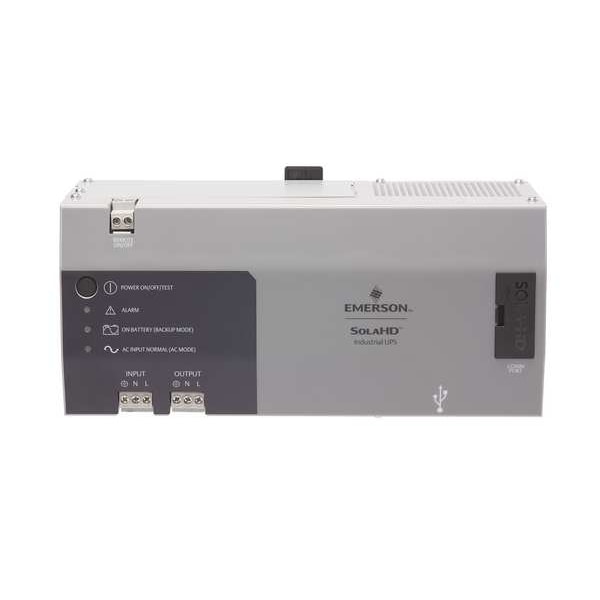

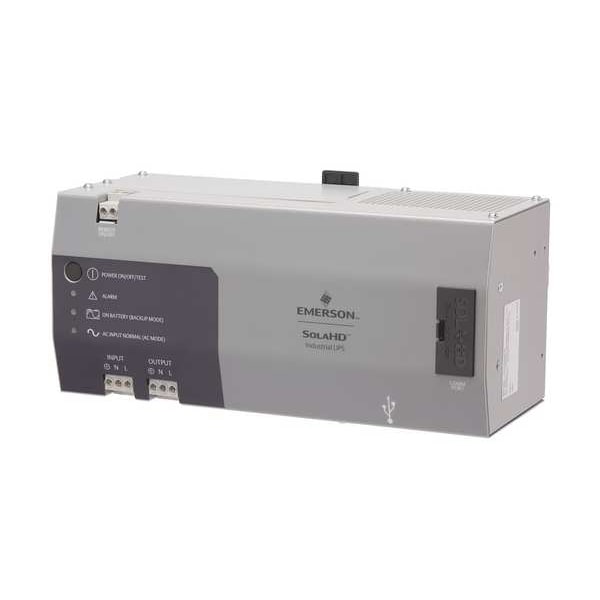

Smart UPS, 850VA, Standby, Out: 120V AC In: 120V AC
| Item | Smart UPS |
|---|---|
| UPS Type | Standby |
| Power Rating | 850 VA |
| Mounting | DIN Rail |
| Wattage | 510 W |
| Input Voltage | 120V AC |
| Output Voltage | 120V AC |
| Backup Time (Half/Full Load) | 1.5 min/7 min |
| Outlet Type | Hardwired |
| Medical Grade | No |
| Number of Outlets | 0 |
| Special Features | Cold Start Capability, Phone/Dataline Surge Protection, Simulated Sine Wave Output |
| Input Current | 8 A |
| Hz | 50/60 Hz |
| Width | 5 in |
| Battery Type | VRLA |
| Depth | 5 in |
| NEMA Receptacle Configuration | No Configuration |
| NEMA Plug Configuration | Not Applicable |
| Housing Material | Metal |
| Height | 5 in |
| Phase | Single |
| Cord Length | No Cord |
| Ports | RS232 |
| Includes | Software and Cable |
| Automatic Volts Regulation | No |
| Transfer Time | 8 msec |
| Standards | EMC: EN50091-2, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class A, IEC 60801-2, IEC 60801-3, IEC 60801-4, IEC 61000-2-2 |
| Typical Back-up Time (minutes, full load) | SDU 500B(-5): 4:20; SDU 850B(-5): 1:30 |
| Number of Phases | Single Phase |
| Nominal Voltage Range | 120 or 230 Vac |
| Capacity (VA/W) | SDU 500B(-5): 500/300; SDU 850B(-5): 850/510 |
| Output Voltage Range | 120 or 230 Vac (Simulated Sinewave) |
| Operating Temperature | 0°C to +50°C |
| Audible Noise | < 40dBA (beyond 1 meter from surface) |
| Includes Battery | Battery Included |
| Power Cord Length | Not Applicable |
| Power Rating - Real | 510 W |
| Operating Temperature - Maximum | 122 deg F |
| Input Current - Maximum | 8 A |
| Output Ports Included | RS232 |
| Data Line Protection | Includes Data Line Surge Protection |
| Replacement Battery Part Number | RS232 |
| Visible Indicator Light Conditions | Battery Low |
| Overall Width | 11.1 in |
| Operating Temperature - Minimum | 32 deg F |
| Manufacturer Warranty | 2 yr |
| External Battery Compatible | External Battery Pack Compatible |
| Battery Recharge Time | 8 hr |
| Automatic Voltage Regulation | No Automatic Voltage Regulation |
| Package Quantity | 1 |
