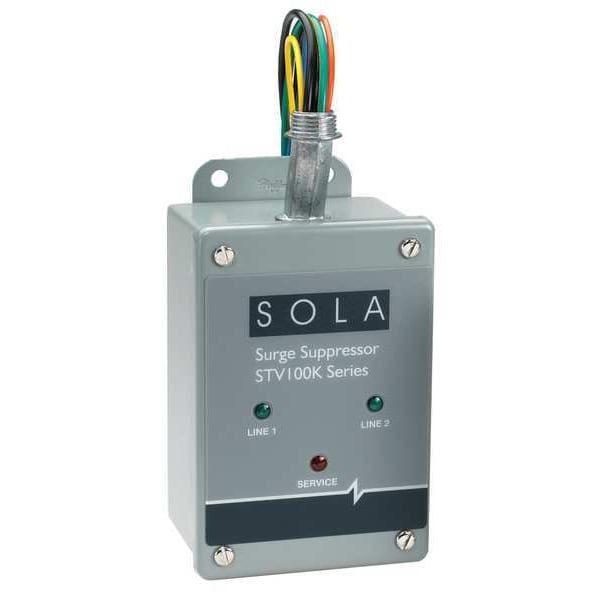

Surge Protection Device, 1 Phase, 120/240V, 2 Poles, 3 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Chase Nipple |
| Phase | 1 |
| Voltage | 120/240V |
| Number of Poles | 2 |
| Voltage Protection Rating | 1000V (L-L), 600V (L-N), 700V (L-G, N-G) |
| Number of Wires | 3 Wires |
| Modes of Protection | L-G, L-N, N-G, L-L |
| Max. Surge Current Per Mode | 100 kA |
| Max. Surge Current per Phase | 100 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 100 kA |
| Modular | No |
| Max. Continuing Operating Voltage | 150/300V AC |
| Enclosure NEMA Rating | NEMA 12 |
| Enclosure Material | Metal |
| Length | 6 in |
| Depth | 3.2 in |
| Width | 4 in |
| Wire Gauge | 12 AWG |
| Includes | Audible Alarm, LED Status Indicator |
| Standards | cULus Listed, RoHS, Type 2 |
| Green Environmental Attribute | Does not Contain Reproductive or Developmental Toxins (as Per State of CA List), Endocrine Disrupters (as Per European Union Priority For Research List), Asthmagens (as Per AOEC List), Carcinogens (as Per IARC 1-2A-2B Lists) |
| Noise Attenuation | 40dB |
| Modular / Nonmodular | Nonmodular |
| Green Certification or Other Recognition | ENERGY STAR |
| UL SPD Type | Type 2 |
| System Connection | Parallel |
| Chase Nipple Size | 1/2 in |
| Max. Operating Temp. | 140 deg F |
| Min. Operating Temp. | -40 deg F |
| Mounting | Flange, Parallel |
| Includes Surge Counter | No |
| Status Indicator | Audible Alarm, LED Light |
| Hertz | 47-63 Hz |
| A/C Rating | 100 kAIC |
| Input Voltage Range | 120, 208, 230, 240, 277, 400, 480 Vac |
| Operating Temperature | -40°C to +60°C |
| Package Quantity | 1 |
