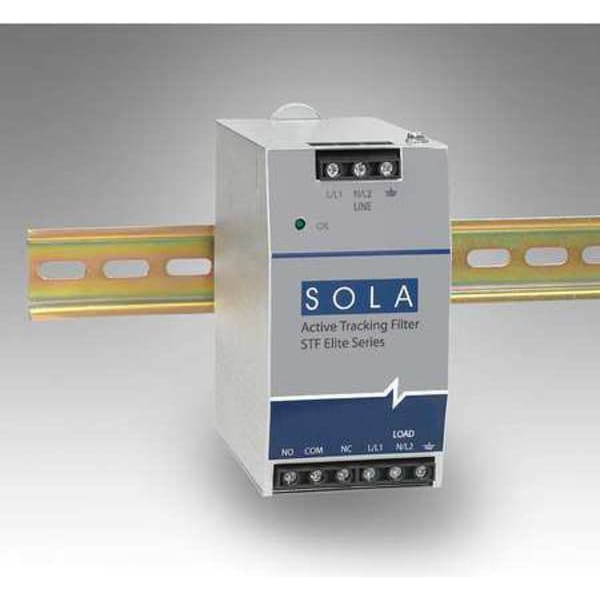

Surge Protection Device, 1 Phase, 120V, 1 Poles, 2 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | DIN Rail |
| Phase | 1 |
| Voltage | 120 V |
| Number of Poles | 1 |
| Voltage Protection Rating | 400V (L-N), 600V (L-G, N-G) |
| Number of Wires | 2 Wires |
| Modes of Protection | L-G, L-N, N-G |
| Max. Surge Current Per Mode | 30 kA |
| Max. Surge Current per Phase | 30 kA |
| Nominal Discharge Current | 3 A |
| Short Circuit Current Rating | 5 kA |
| Modular | Yes |
| Filtering | Yes |
| Max. Continuing Operating Voltage | 150V AC |
| IP Rating | IP20 |
| Enclosure Material | Metal |
| Length | 4.88 in |
| Depth | 4.56 in |
| Width | 2.56 in |
| Wire Gauge | 24 AWG |
| Includes | LED Status Indicator |
| Modular / Nonmodular | Modular |
| Noise Attenuation | Common: 60dB @ 5 MHz to 50 MHz, Normal: 90dB @ 100kHz to 50 MHz |
| Green Certification or Other Recognition | ENERGY STAR |
| Green Environmental Attribute | Does not Contain Reproductive or Developmental Toxins (as Per State of CA List), Endocrine Disrupters (as Per European Union Priority For Research List), Asthmagens (as Per AOEC List), Carcinogens (as Per IARC 1-2A-2B Lists) |
| Standards | CE, cULus Listed, RoHS, Type 4, UL Listed |
| System Connection | Series |
| Max. Operating Temp. | 122 deg F |
| Amps | 3 |
| UL SPD Type | Type 4 |
| Min. Operating Temp. | -40 deg F |
| Status Indicator | LED Light |
| Includes Surge Counter | No |
| Frequency Response: Common (F-R) 5 MHz to 50 MHz | 60 dB Max |
| Peak Surge Current Capability: Line to Ground | 6,500 Amps |
| Peak Surge Current Capability: Line to Neutral | 13,000 A |
| Load Surge Current Rating: 1 sec | 3 x Nominal |
| Frequency Response: Normal (F-R) 100 kHz to 50 MHz | 90 dB Max |
| Transient Reduction Typical Category A Ringwave | < 60 V Peak |
| Operating Temperature | -40°C to +50°C |
| Single-Phase 120 and 240 Vac Model Amperage | 3.0, 5.0, 10.0, 20.0 |
| Load Surge Current Rating: 10 msec | 5 x Nominal |
| Transient Reduction Typical Category B Ringwave | < 100 V Peak UL 1449 |
| Load Surge Current Rating: 10 sec | 2 x Nominal |
| Peak Surge Current Capability: Per Phase | 19,500 A |
| Peak Surge Current Capability: Neutral to Ground | 6,500 Amps |
| Hertz | 47-63 Hz |
| Package Quantity | 1 |
