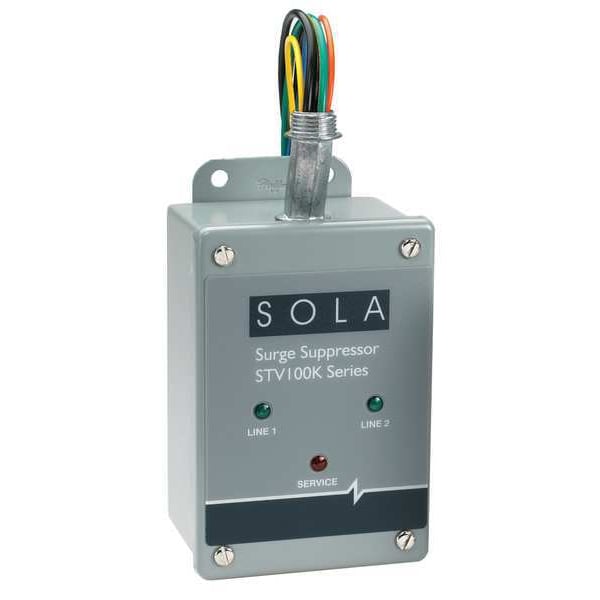

Surge Protection Device, 1 Phase, 240V, 1 Poles, 2 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Chase Nipple |
| Phase | 1 |
| Voltage | 240 V |
| Number of Poles | 1 |
| Voltage Protection Rating | 1000V (L-L), 1200V (L-G) |
| Number of Wires | 2 Wires |
| Modes of Protection | L-G, L-L |
| Max. Surge Current Per Mode | 100 kA |
| Max. Surge Current per Phase | 100 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 100 kA |
| Modular | No |
| Max. Continuing Operating Voltage | 320V AC |
| Enclosure NEMA Rating | NEMA 12 |
| Enclosure Material | Metal |
| Length | 6 in |
| Depth | 3.2 in |
| Width | 4 in |
| Wire Gauge | 12 AWG |
| Includes | Audible Alarm, LED Status Indicator |
| Green Certification or Other Recognition | ENERGY STAR |
| Noise Attenuation | 40dB |
| Standards | cULus Listed, RoHS, Type 2 |
| Green Environmental Attribute | Does not Contain Reproductive or Developmental Toxins (as Per State of CA List), Endocrine Disrupters (as Per European Union Priority For Research List), Asthmagens (as Per AOEC List), Carcinogens (as Per IARC 1-2A-2B Lists) |
| Min. Operating Temp. | -40 deg F |
| System Connection | Parallel |
| Max. Operating Temp. | 140 deg F |
| Chase Nipple Size | 1/2 in |
| UL SPD Type | Type 2 |
| Basic Material | Metallic |
| Length (Straight Wireway) | 6 in |
| Mounting | Flange, Parallel |
| Includes Surge Counter | No |
| Status Indicator | Audible Alarm, LED Light |
| A/C Rating | 100 kAIC |
| Operating Temperature | -40°C to +60°C |
| Hertz | 47-63 Hz |
| Input Voltage Range | 120, 208, 230, 240, 277, 400, 480 Vac |
| Peak Surge Current Capability: Neutral to Ground | 6,500 Amps |
| Load Surge Current Rating: 10 sec | 2 x Nominal |
| Peak Surge Current Capability: Line to Ground | 6,500 Amps |
| Peak Surge Current Capability: Line to Neutral | 6,500 A |
| Frequency Response: 100 kHz to 50 MHz | 90 dB Max |
| Load Surge Current Rating: 10 msec | 5 x Nominal |
| Load Surge Current Rating: 1 sec | 3 x Nominal |
| Peak Surge Current Capability: Per Phase | 13,000 A |
| Single-Phase 120 and 240 Vac Model Amperage | 2.5, 5.0, 7.5, 15.0, 30.0 |
| Package Quantity | 1 |
