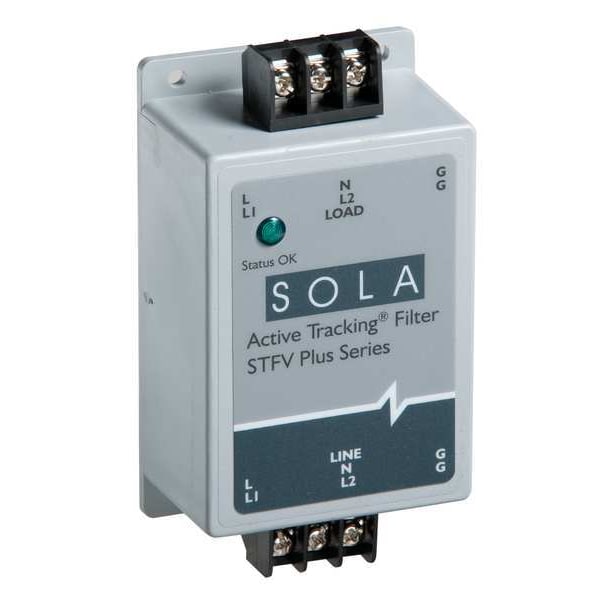

Surge Protection Device, 1 Phase, 240V, 2 Poles, 2 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Surface |
| Phase | 1 |
| Voltage | 240 V |
| Number of Poles | 2 |
| Number of Wires | 2 Wires |
| Modes of Protection | L-G, L-N, N-G, L-L |
| Max. Surge Current Per Mode | 25 kA |
| Max. Surge Current per Phase | 25 kA |
| Nominal Discharge Current | 2.5 A |
| Short Circuit Current Rating | Not Rated |
| Modular | Yes |
| Filtering | Yes |
| Max. Continuing Operating Voltage | 275V AC |
| Enclosure Material | Plastic |
| Length | 4 in |
| Depth | 1.81 in |
| Width | 2.88 in |
| Wire Gauge | 26 AWG |
| Includes | LED Status Indicator |
| Modular / Nonmodular | Modular |
| Noise Attenuation | 90dB @ 100kHz to 50 MHz |
| Standards | CE, CSA, cULus Listed, RoHS, UL Listed |
| Green Environmental Attribute | Does not Contain Reproductive or Developmental Toxins (as Per State of CA List), Endocrine Disrupters (as Per European Union Priority For Research List), Asthmagens (as Per AOEC List), Carcinogens (as Per IARC 1-2A-2B Lists) |
| Green Certification or Other Recognition | ENERGY STAR |
| Min. Operating Temp. | -40 deg F |
| System Connection | Series |
| Amps | 2.5 |
| Max. Operating Temp. | 140 deg F |
| Includes Surge Counter | No |
| Status Indicator | LED Light |
| Peak Surge Current Capability: Line to Neutral | 6,500 A |
| Hertz | 50/60 Hz |
| Transient Reduction Typical Category B Ringwave | <50 V Peak UL 1449 |
| Load Surge Current Rating: 10 msec | 5 x Nominal |
| Single-Phase 120 and 240 Vac Model Amperage | 2.5, 5.0, 7.5, 15.0, 30.0 |
| Load Surge Current Rating: 10 sec | 2 x Nominal |
| Operating Temperature | -40°C to +60°C |
| Peak Surge Current Capability: Neutral to Ground | 6,500 Amps |
| Peak Surge Current Capability: Line to Ground | 6,500 Amps |
| Transient Reduction Typical Category A Ringwave | < 10 V Peak |
| Peak Surge Current Capability: Per Phase | 13,000 A |
| Load Surge Current Rating: 1 sec | 3 x Nominal |
| Frequency Response: 100 kHz to 50 MHz | 90 dB Max |
| Package Quantity | 1 |
