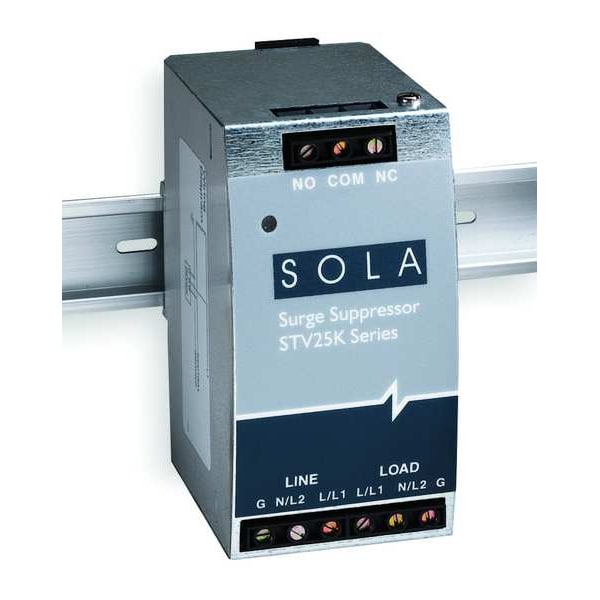

Surge Protection Device, 1 Phase, 240V, 3 Poles, 2 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | DIN-Rail |
| Phase | 1 |
| Voltage | 240 V |
| Number of Poles | 3 |
| Voltage Protection Rating | 900V (L-L, L-G) |
| Number of Wires | 2 Wires |
| Modes of Protection | L-G, L-L |
| Max. Surge Current Per Mode | 25 kA |
| Max. Surge Current per Phase | 25 kA |
| Nominal Discharge Current | 3 kA |
| Short Circuit Current Rating | 5 kA |
| Modular | Yes |
| Filtering | Yes |
| Max. Continuing Operating Voltage | 275V AC |
| IP Rating | IP20 |
| Enclosure Material | Metal |
| Length | 4.87 in |
| Depth | 4-3/4 in |
| Width | 2.56 in |
| Wire Gauge | 12 AWG |
| Includes | LED Status Indicator |
| Standards | cULus Listed, RoHS, Type 4 |
| Modular / Nonmodular | Modular |
| Noise Attenuation | Common 40dB Minimum, Normal: 50dB Minimum |
| System Connection | Series |
| Max. Operating Temp. | 140 deg F |
| Min. Operating Temp. | -40 deg F |
| UL SPD Type | Type 4 |
| Amps | 20 |
| Mounting | Din Rail |
| Includes Surge Counter | No |
| Status Indicator | LED Light |
| Operating Temperature | -40°C to +60°C |
| Input Voltage Range | 120, 240 Vac |
| Hertz | 47-63 Hz |
| Noise Attenuation, Nominal Mode | 50 dB Min |
| Noise Attenuation, Common Mode | 40 dB Min |
| Amperage | 20 A |
| Output Power | 60 to 240 W |
| Overload Capability | < 16-60 Vdc |
| Output Voltage Range | 12, 24, 48 Vdc |
| UL Recognized Component, Haz. Loc. | Class I, Division 2, Groups A, B, C, D |
| Package Quantity | 1 |
