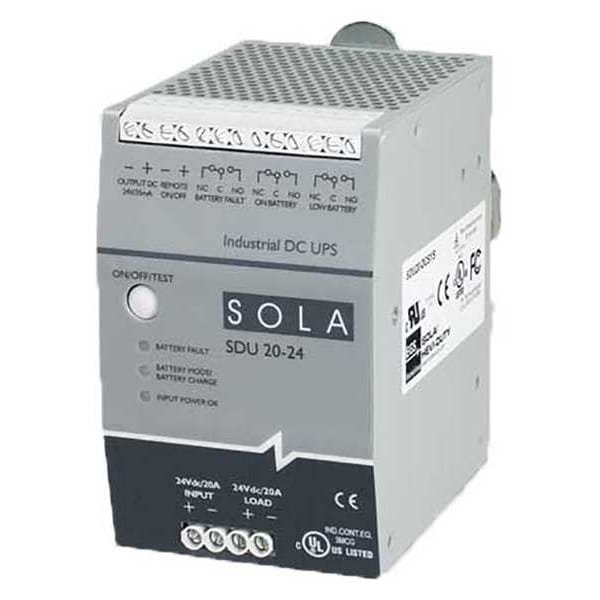

UPS System, 480VA, Standby, Out: 22.5V DC In: 22.5V DC
| Item | UPS System |
|---|---|
| UPS Type | Standby |
| Power Rating | 480 VA |
| Mounting | DIN Rail, Chassis |
| Wattage | 480 W |
| Input Voltage | 22.5V DC |
| Output Voltage | 22.5V DC |
| Backup Time (Half/Full Load) | 14 min/4 min |
| Outlet Type | Hardwired |
| Medical Grade | No |
| Number of Outlets | 0 |
| For Use With | SolaHD SDU DC Series |
| Ports | Screw Terminals |
| NEMA Plug Configuration | Not Applicable |
| Special Features | Battery Module Required |
| Battery Type | VRLA |
| NEMA Receptacle Configuration | No Configuration |
| Width | 77 mm |
| Housing Material | Metal |
| Standards | UL, CSA, CE |
| Hz | 50/60 Hz |
| Display Type | No Display |
| Cord Length | No Cord |
| Phase | Single |
| Audible Noise | < 40dBA (beyond 1 meter from surface) |
| SDU 10-24 Model | 240 VA, 24V/10A |
| Operating Temperature | -20°C to +50°C |
| Output Voltage Range | 22.5 - 30 Vdc |
| SDU 20-24 Model | 480 VA, 24V/20A |
| Input voltage range | 22.5-30 Vdc |
| Typical Back-up Time (minutes, full/half load) | 10 Amp: 14; 20 Amps: 4 |
| Nominal Voltage Range | 230 Vac |
| Visible Indicator Light Conditions | Overload |
| External Battery Compatible | External Battery Pack Compatible |
| Operating Temperature - Maximum | 122 deg F |
| Operating Temperature - Minimum | -4 deg F |
| Output Ports Included | Screw Terminals |
| Includes Battery | Battery Included |
| Power Cord Length | Not Applicable |
| Input Current - Maximum | 20 A |
| Audible Alarm Conditions | Overload, Replace Battery |
| Overall Width | 3.03 in |
| Package Quantity | 1 |
