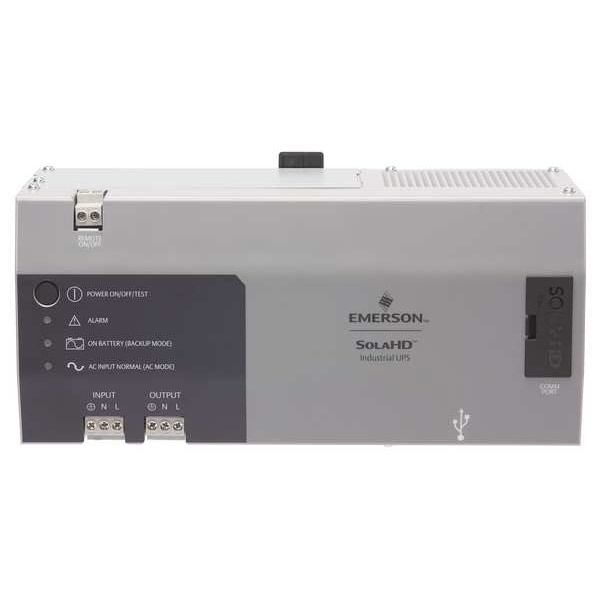

UPS System, 500VA, Line Interactive, Out: 230V AC In: 230V AC
| Item | UPS System |
|---|---|
| UPS Type | Line Interactive |
| Power Rating | 500 VA |
| Mounting | DIN Rail, Chassis |
| Wattage | 300 W |
| Input Voltage | 230V AC |
| Output Voltage | 230V AC |
| Backup Time (Half/Full Load) | 14.5 min/4.3 min |
| Outlet Type | Hardwired |
| Medical Grade | No |
| Number of Outlets | 0 |
| Depth | 5 in |
| Hz | 50 Hz/60 Hz |
| Special Features | Simulated Sine Wave Output |
| Phase | Single |
| Cord Length | No Cord |
| Ports | Screw Terminals, USB, Communication Card Port |
| Input Current | 6.3 A |
| NEMA Receptacle Configuration | No Configuration |
| Includes | Software and Cable |
| For Use With | SolaHD SDU AC - B Series |
| NEMA Plug Configuration | Not Applicable |
| Transfer Time | 4 to 8 msec |
| Standards | EMC: EN50091-2, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class A, IEC 60801-2, IEC 60801-3, IEC 60801-4, IEC 61000-2-2 |
| Width | 5 in |
| Height | 5 in |
| Battery Type | VRLA |
| Housing Material | Metal |
| Output Ports Included | Communication Card Port, Screw Terminals, USB |
| Operating Temperature - Minimum | 32 deg F |
| Overall Width | 11.1 in |
| Input Current - Maximum | 6.3 A |
| Power Cord Length | Not Applicable |
| Battery Recharge Time | 8 hr |
| Visible Indicator Light Conditions | Battery Low |
| Manufacturer Warranty | 2 yr |
| Includes Battery | Battery Included |
| Power Rating - Real | 300 W |
| Data Line Protection | Includes Data Line Surge Protection |
| Operating Temperature - Maximum | 122 deg F |
| External Battery Compatible | External Battery Pack Compatible |
| Package Quantity | 1 |
